MTNN18N03Q8 - N-Channel MOSFET

Product Overview

CYStech Electronics

Datasheet Details

Part number	MTNN18N03Q8
Manufacturer	CYStech Electronics
File Size	721.53 KB
Description	N-Channel MOSFET
Datasheet	MTNN18N03Q8 Datasheet

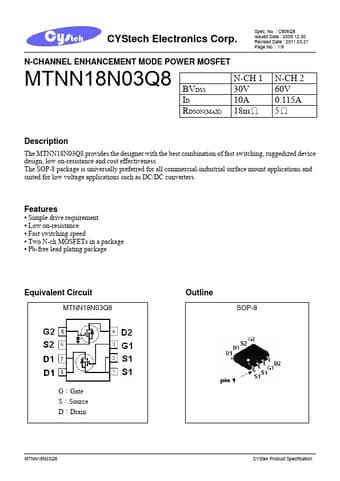

Additional preview pages of the MTNN18N03Q8 datasheet.

Product details

Description

BVDSS ID RDSON(MAX) N-CH 1 30V 10A 18mΩ N-CH 2 60V 0.115A 5Ω The MTNN18N03Q8 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness.The SOP-8 package is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters.

Features

Simple drive requirement.
Low on-resistance.
Fast switching speed.
Two N-ch MOSFETs in a package.
Pb-free lead plating package Equivalent Circuit MTNN18N03Q8 Outline SOP-8 G：Gate S：Source D：Drain MTNN18N03Q8 CYStek Product Specification http://www. Datasheet4U. com CYStech Electronics Corp. Absolute Maximum Ratings (Ta=25°C) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current @ TC=25 °C (Note 1) Continuous Drain Current @.
