MTC4503AQ8 - P- & N-Channel Enhancement Mode Power MOSFET

Product Overview

CYStech Electronics

Datasheet Details

Part number	MTC4503AQ8
Manufacturer	CYStech Electronics
File Size	360.80 KB
Description	P- & N-Channel Enhancement Mode Power MOSFET
Datasheet	MTC4503AQ8 Datasheet

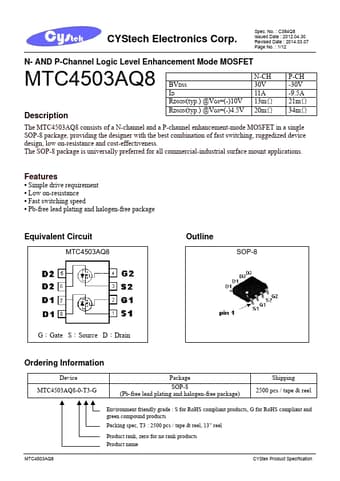

Additional preview pages of the MTC4503AQ8 datasheet.

Product details

Description

RDSON(typ.) @VGS=(-)4.5V 20mΩ P-CH -30V -9.5A 21mΩ 34mΩ The MTC4503AQ8 consists of a N-channel and a P-channel enhancement-mode MOSFET in a single SOP-8 package, providing the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.The SOP-8 package is universally preferred for all commercial-industrial surface mount applications.

Features

Simple drive requirement.
Low on-resistance.
Fast switching speed.
Pb-free lead plating and halogen-free package Equivalent Circuit MTC4503AQ8 Outline SOP-8 G：Gate S：Source D：Drain Ordering Information Device MTC4503AQ8-0-T3-G Package SOP-8 (Pb-free lead plating and halogen-free package) Shipping 2500 pcs / tap.
