LM103AQ8 - Dual Operational Amplifier

Name: LM103AQ8
SKU: LM103AQ8-809791

CYStech Electronics

📥 Download Datasheet

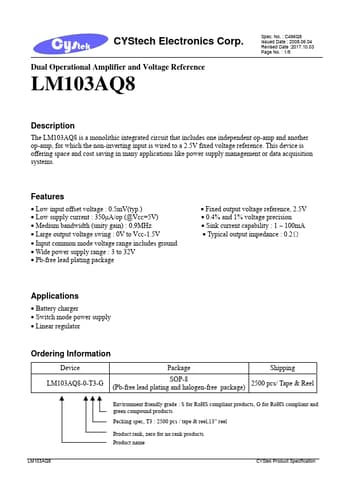

LM103AQ8 Datasheet Preview — Preview of LM103AQ8 PDF

Datasheet Details

Part number	LM103AQ8
Manufacturer	CYStech Electronics
File Size	368.80 KB
Description	Dual Operational Amplifier
Datasheet	LM103AQ8-CYStechElectronics.pdf

LM103AQ8 Product details

Description

The LM103AQ8 is a monolithic integrated circuit that includes one independent op-amp and another op-amp, for which the non-inverting input is wired to a 2.5V fixed voltage reference.

Features

Low input offset voltage : 0.5mV(typ. ).
Low supply current : 350μA/op (@VCC=5V).
Medium bandwidth (unity gain) : 0.9MHz.
Large output voltage swing : 0V to VCC-1.5V.
Input common mode voltage range includes ground.
Wide power supply range : 3 to 32V.
Pb-free lead plating package.
Fixed output voltage reference, 2.5V.
0.4% and 1% voltage precision.
Sink current capability : 1 ~ 100mA.
Typical outp.
