SR2020P 20A Schottky Barrier Rectifiers

SR2020P Description

RoHS compliant SR2020P thru SR20150P ® 20.0 AMPS.Schottky Barrier Rectifiers .

SR2020P Features

* Dual rectifier construction, positive center-tap Plastic package has Underwriters Laboratory Flammability Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low VF High surge capability Epitaxial construction For use in

SR2020P Applications

* Guardring for transient protection High temperature soldering guaranteed: 260oC/10seconds,0.17”(4.3mm)lead lengths at 5 lbs. , (2.3kg) tension TO-3P Unit: inch (mm) Mechanical Data Cases: JEDEC TO-3P/TO-247AD molded plastic Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method

📥 Download Datasheet

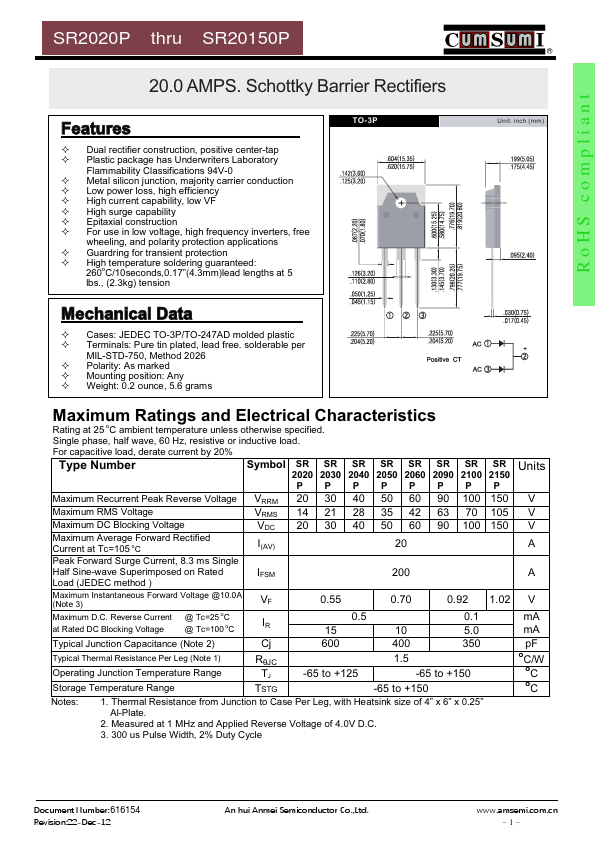

Preview of SR2020P PDF

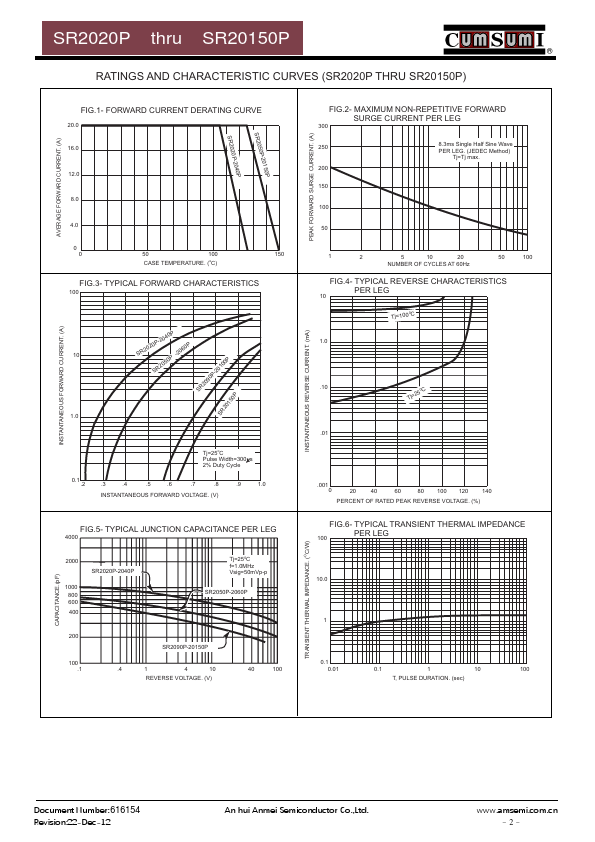

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SR2020P
Manufacturer
CUMSUMI
File Size
607.48 KB
Datasheet
SR2020P-CUMSUMI.pdf
Description
20A Schottky Barrier Rectifiers
