PDS1-S - DC-DC CONVERTER

CUI

📥 Download Datasheet

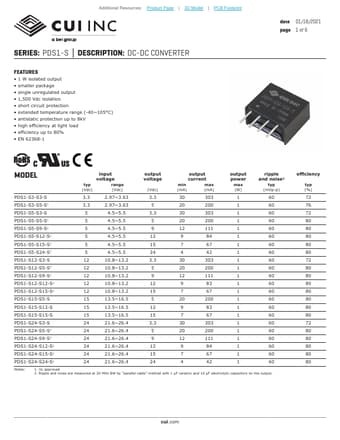

PDS1-S Datasheet Preview — Preview of PDS1-S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PDS1-S
Manufacturer	CUI
File Size	464.46 KB
Description	DC-DC CONVERTER
Datasheet	PDS1-S_CUI.pdf

PDS1-S Product details

Description

DC-DC CONVERTER

Features

1 W isolated output.
smaller package.
single unregulated output.
1,500 Vdc isolation.
short circuit protection.
extended temperature range (-40~105°C).
antistatic protection up to 8kV.
high efficiency at light load.
efficiency up to 80%.
EN 62368-1 date 01/18/2021 page 1 of 6 MODEL typ (Vdc) input voltage range (Vdc) output voltage (Vdc) output current min (mA) max (mA) output power max (W) ripp.
