VCP3006X - Frequency Translator

CTS

The VCP3006X by CTS is a Frequency Translator. Below is the official datasheet preview.

📥 Download Datasheet

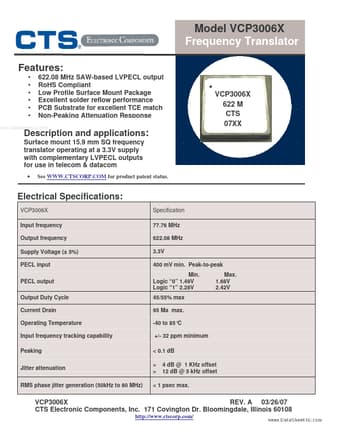

VCP3006X Frequency Translator by CTS - Datasheet Preview — Official preview page of the **VCP3006X** Frequency Translator datasheet (CTS).

Datasheet Details

Part number	VCP3006X
Manufacturer	CTS
File Size	223.16 KB
Description	Frequency Translator
Datasheet	VCP3006X_CTS.pdf
Additional preview pages of the VCP3006X datasheet.

VCP3006X Product details

Description

and applications: Surface mount 15.9 mm SQ frequency translator operating at a 3.3V supply with complementary LVPECL outputs for use in telecom & datacom VCP3006X 622 M CTS 07XX See WWW.CTSCORP.COM for product patent status.Electrical Specifications: VCP3006X Input frequency Output frequency Supply Voltage (± 5%) PECL input PECL output Output Duty Cycle Current Drain Operating Temperature Input frequency tracking capability Peaking Jitter attenuation RMS phase jitter generation (50

Features

622.08 MHz SAW-based LVPECL output RoHS Compliant Low Profile Surface Mount Package Excellent solder reflow performance PCB Substrate for excellent TCE match Non-Peaking Attenuation Response.
www. DataSheet4U. com.
