219-xxMST - (219-xxMST) DIP Switch

Download the 219-xxMST datasheet PDF. This datasheet also covers the 219-4MST variant, as both devices belong to the same (219-xxmst) dip switch family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 76 1 2 3 4 2.54 1.27 .46 5.79 4 8.43 Free shipping on orders over £100! All prices are in.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (219-4MST_CTS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 219-xxMST
Manufacturer CTS
File Size 252.86 KB
Description (219-xxMST) DIP Switch
Datasheet download datasheet 219-xxMST Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2198SM-xx-PG 1.27 X 1.27mm Box Header SMD Type ETC

Other Datasheets by CTS

Part Number Description
219-xxxx SMT DIP
219-2LPSTR SMT DIP
219-4MST (219-xxMST) DIP Switch
219 SMT DIP

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

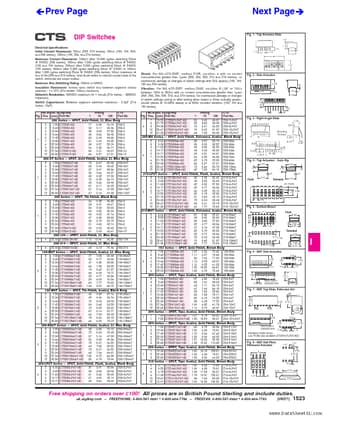

ç Prev Page DIP Switches CTS Next Page è Fig. 1 - Top Actuated Slide Electrical Specifications: 6 8 7 5 4 Initial Contact Resistance: 25mΩ (209, 219 Series); 50mΩ (193, 194, 204, and 206 Series); 100mΩ (195, 208, and 218 Series). Maximum Contact Resistance: 100mΩ after 10,000 cycles switching 50mA @ 24VDC (206 Series); 100mΩ after 7,000 cycles switching 50mA @ 24VDC (193 and 194 Series); 500mΩ after 2,000 cycles switching 50mA @ 24VDC (195 Series); 500mΩ after 2,000 cycles switching 50mA @ 15VDC or 100mΩ after 1,000 cycles switching 25mA @ 24VDC (208 Series); 50mΩ maximum at end of life (209 and 219 Series). Gold finish refers to internal contact area of the switch, terminals are solder coated. Maximum Non-Switching Rating: 100mA or 50VDC.
