VCS1001A - PCB Substrate

General Description

.

Key Features

  • 622.08 MHz VCSO.
  • Low Profile Surface Mount Package.
  • Excellent solder reflow performance.
  • PCB Substrate for excellent TCE match.

📥 Download Datasheet

Datasheet Details

Part number VCS1001A
Manufacturer CTS Corporation
File Size 97.38 KB
Description PCB Substrate
Datasheet download datasheet VCS1001A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VCS101 (VCSx0x) Current Sense/Current Shunt Resistors Vishay Siliconix
VCS1026 622.080MHz VCSO CTS
VCS103 (VCSx0x) Current Sense/Current Shunt Resistors Vishay Siliconix
VCS12AXT (VCSAXT Series) 3.3V 7.5 X 5mm Hcmos Ceramic SMD Fox Electronics
VCS12AXTR3 (VCSAXT Series) 3.3V 7.5 X 5mm Hcmos Ceramic SMD Fox Electronics

Other Datasheets by CTS Corporation

Part Number Description
VCS1003A PCB Substrate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

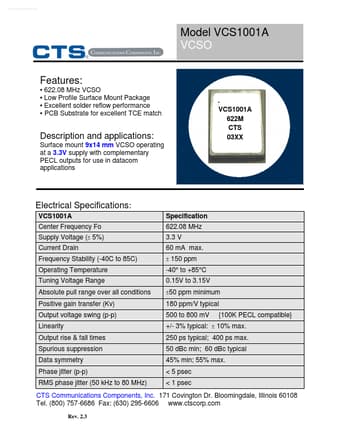

www.DataSheet4U.com Model VCS1001A VCSO Features: • 622.08 MHz VCSO • Low Profile Surface Mount Package • Excellent solder reflow performance • PCB Substrate for excellent TCE match Description and applications: Surface mount 9x14 mm VCSO operating at a 3.3V supply with complementary PECL outputs for use in datacom applications . VCS1001A 622M CTS 03XX Electrical Specifications: VCS1001A Center Frequency Fo Supply Voltage (± 5%) Current Drain Frequency Stability (-40C to 85C) Operating Temperature Tuning Voltage Range Absolute pull range over all conditions Positive gain transfer (Kv) Output voltage swing (p-p) Linearity Output rise & fall times Spurious suppression Data symmetry Phase jitter (p-p) RMS phase jitter (50 kHz to 80 MHz) Specification 622.08 MHz 3.3 V 60 mA max.
