RS5AC - Surface Mount Fast Recovery Rectifiers

RS5AC Datasheet Preview — Preview of RS5AC PDF

Datasheet Details

Part number	RS5AC
Manufacturer	CTK
File Size	241.63 KB
Description	Surface Mount Fast Recovery Rectifiers
Datasheet	RS5AC-CTK.pdf

RS5AC Product details

Description

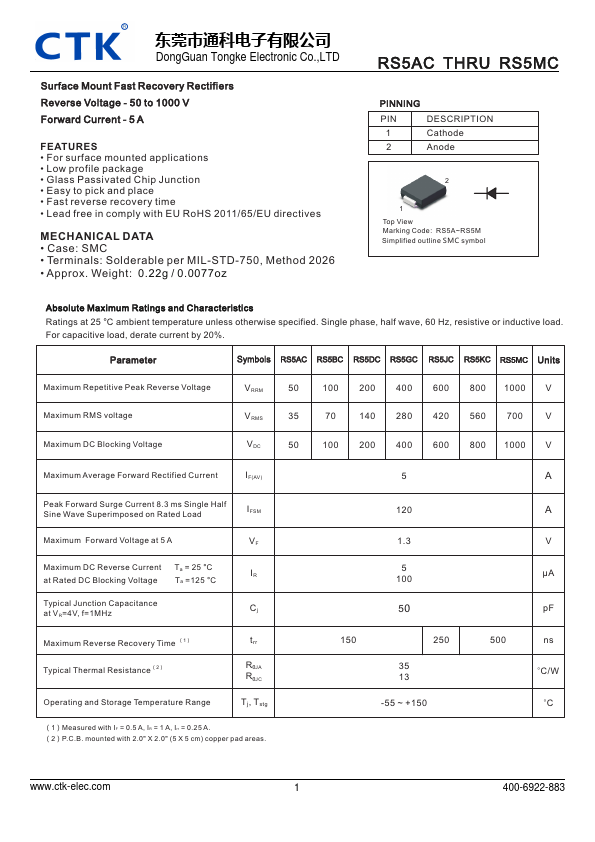

1 Cathode 2 Anode 2 1 Top View Marking Code: RS5A~RS5M Simplified outline SMC symbol Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load.For capacitive load, derate current by 20%.Parameter Symbols RS5AC RS5BC RS5DC RS5GC RS5JC RS5KC RS5MC Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35 70 140 280 420

Features

For surface mounted.
