VT102-3D - Velocity and Temperature Output in One Sensor

Download the VT102-3D datasheet PDF (VT102 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for velocity and temperature output in one sensor.

Features

  • Velocity and Temperature Output in One Sensor High Performance, Dual Output Sensor ±50 in/sec, Peak Dynamic Range Standard 3 Pin MIL Connection Integrates to Velocity in the Sensor VT102-1D 3 Pin Connector Connector Pin Polarity A (+) Signal / Power B (-) Common C (+) Temperature Voltage VT102-2D Integral Cable Conductor Polarity Red (+) Signal / Power Black (-) Common White (+) Temperature Voltage Shield Cable Drain Wire VT102-3D Armored Integral Cable Conductor Polarity.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VT102-CTC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VT102-3D
Manufacturer CTC
File Size 348.51 KB
Description Velocity and Temperature Output in One Sensor
Datasheet download datasheet VT102-3D Datasheet

📁 Similar Datasheet

  • VT10200C - Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT10200C-E3 - Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT10200C-M3 - Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT10202C-M3 - Dual High Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT1000 - (VT1000 - VT1500) High Voltage 50mA Silicon Rectifiers (Electronic Devices)
  • VT1045BP - Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT1045C - Dual Low-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT1045CBP - Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT1060C - Dual High-Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
  • VT1060C-E3 - Dual High Voltage Trench MOS Barrier Schottky Rectifier (Vishay)
Other Datasheets by CTC
  • VT102-1D - Velocity and Temperature Output in One Sensor
  • VT102-2D - Velocity and Temperature Output in One Sensor
  • VT102 - Velocity and Temperature Output in One Sensor

Full PDF Text Transcription

Click to expand full text

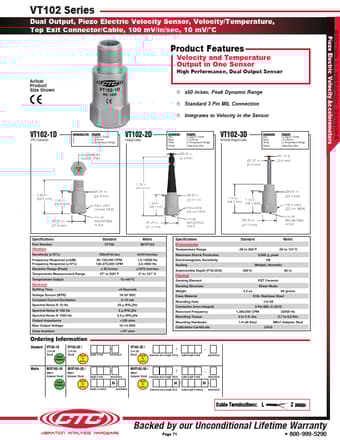

Section I - Vibration Sensors Piezo Electric Velocity Accelerometers VT102 Series Dual Output, Piezo Electric Velocity Sensor, Velocity/Temperature, Top Exit Connector/Cable, 100 mV/in/sec, 10 mV/°C Actual Product Size Shown Product Features Velocity and Temperature Output in One Sensor High Performance, Dual Output Sensor ±50 in/sec, Peak Dynamic Range Standard 3 Pin MIL Connection Integrates to Velocity in the Sensor VT102-1D 3 Pin Connector Connector Pin Polarity A (+) Signal / Power B (-) Common C (+) Temperature Voltage VT102-2D Integral Cable Conductor Polarity Red (+) Signal / Power Black (-) Common White (+) Temperature Voltage Shield Cable Drain Wire VT102-3D Armored Integral Cable Conductor Polarity Red (+) Signal / Power Black (-) Common White (+
