CT3063, CT3061 Phototriac Optocoupler

CT3063 Description

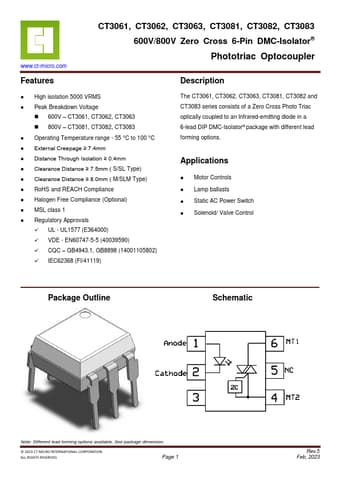

www.ct-micro.com CT3061, CT3062, CT3063, CT3081, CT3082, CT3083 600V/800V Zero Cross 6-Pin DMC-Isolator® Phototriac Optocoupler .
High isolation 5000 VRMS. Peak Breakdown Voltage. 600V. CT3061, CT3062, CT3063. 800V. CT3081, CT3082, CT3083.

CT3063 Applications

* Motor Controls
* Lamp ballasts
* Static AC Power Switch
* Solenoid/ Valve Control Package Outline Schematic Note: Different lead forming options available. See package dimension. © 2023 CT MICRO INTERNATIONAL CORPORATION ALL RIGHTS RESERVED. Page 1 Rev.5 Feb, 2023 www. ct-mic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CT3063, CT3061. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CT3063, CT3061
Manufacturer
CT Micro
File Size
1.25 MB
Datasheet
CT3061-CTMicro.pdf
Description
Phototriac Optocoupler
Note
This datasheet PDF includes multiple part numbers: CT3063, CT3061.
Please refer to the document for exact specifications by model.
