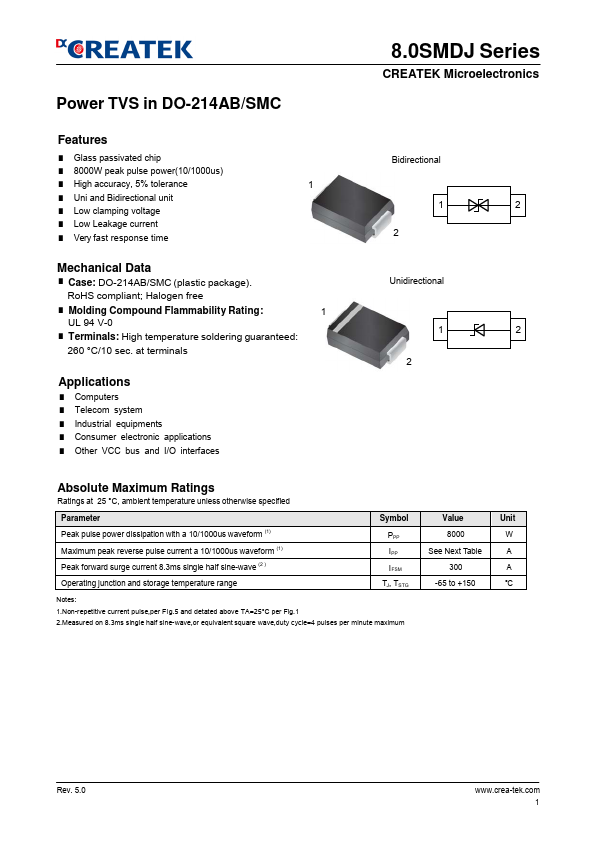

8.0SMDJ14A, 8.0SMDJ12A - Power TVS

Datasheet Details

Part number	8.0SMDJ14A, 8.0SMDJ12A
Manufacturer	CREATEK
File Size	0.98 MB
Description	Power TVS
Datasheet	8.0SMDJ12A-CREATEK.pdf
Note	This datasheet PDF includes multiple part numbers: 8.0SMDJ14A, 8.0SMDJ12A. Please refer to the document for exact specifications by model.

Glass passivated chip.
8000W peak pulse power(10/1000us).
High accuracy, 5% tolerance.
Uni and Bidirectional unit.
Low clamping voltage.
Low Leakage current.
Very fast response time Bidirectional 1 1 2 2 Mechanical Data.
Case: DO-214AB/SMC (plastic package). Unidirectional RoHS compliant; Halogen free.
Molding Compound Flammability Rating: 1 UL 94 V-0.
Terminals: High temperature soldering guaranteed: 1 2 260 °C/10 sec. at termin.
