CS140N08A8 - Silicon N-Channel Power MOSFET

CR Micro

The CS140N08A8 by CR Micro is a Silicon N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

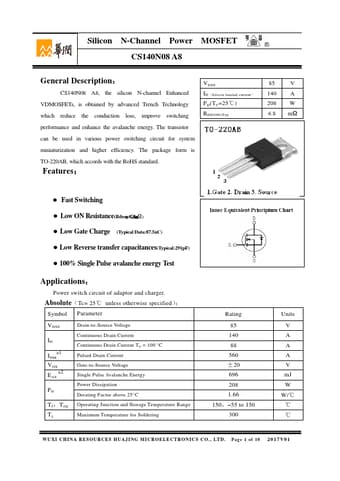

CS140N08A8 Silicon N-Channel Power MOSFET by CR Micro - Datasheet Preview — Official preview page of the **CS140N08A8** Silicon N-Channel Power MOSFET datasheet (CR Micro).

Datasheet Details

Part number	CS140N08A8
Manufacturer	CR Micro
File Size	534.25 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS140N08A8-CRMicro.pdf
Additional preview pages of the CS140N08A8 datasheet.

CS140N08A8 Product details

Description

CS140N08 A8, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.

Features

VDSS ID（Silicon limited current） PD(TC=25℃) RDS(ON)Typ 85 V 140 A 208 W 4.8 mΩ.
Fast Switching.
Low ON Resistance(Rdson≤6mΩ).
Low Gate Charge (Typical Data:87.5nC).
Low Reverse transfer capacitances(Typical:291pF).
100% Single Pulse avalanche energy Test.
