CRXSP160M120G2Q - 1200V 17A SiC MOSFET

CR Micro

📥 Download Datasheet

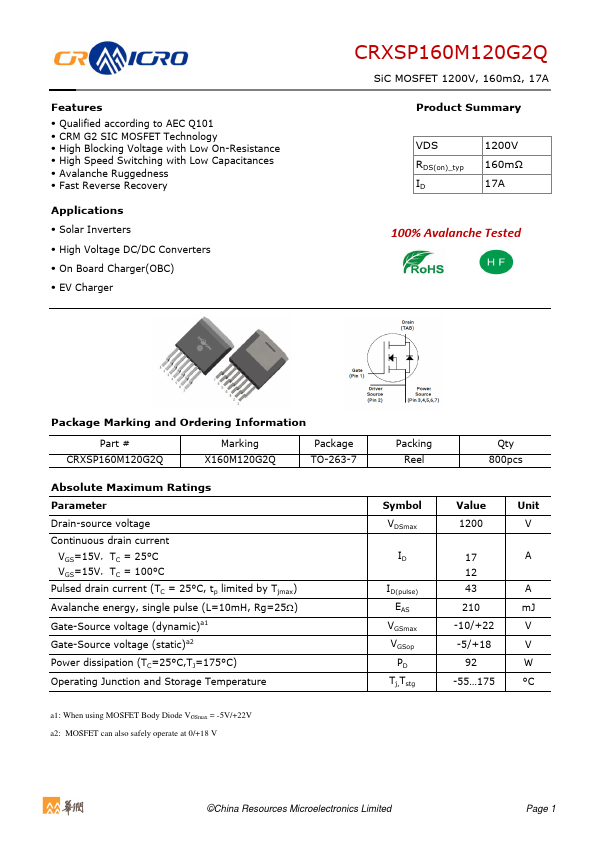

CRXSP160M120G2Q Datasheet Preview — Preview of CRXSP160M120G2Q PDF

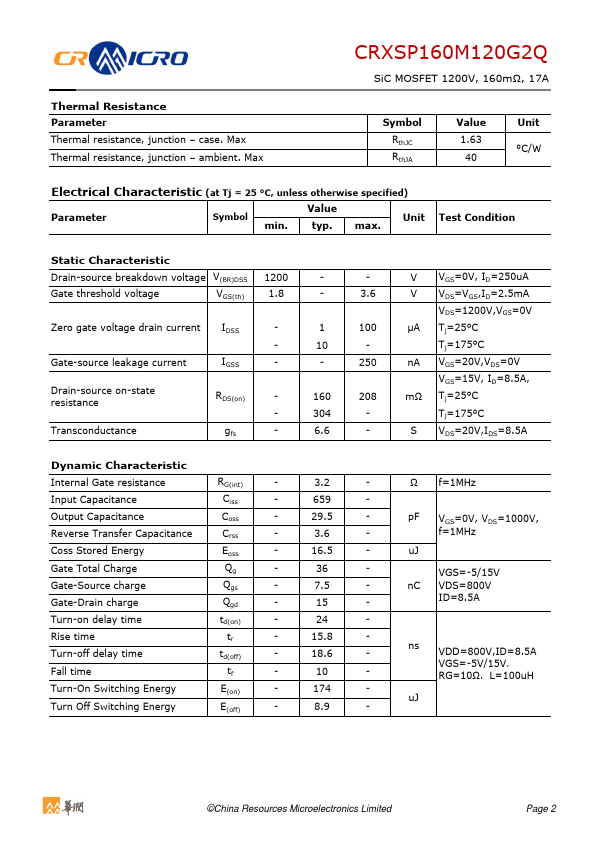

datasheet Preview Page 2

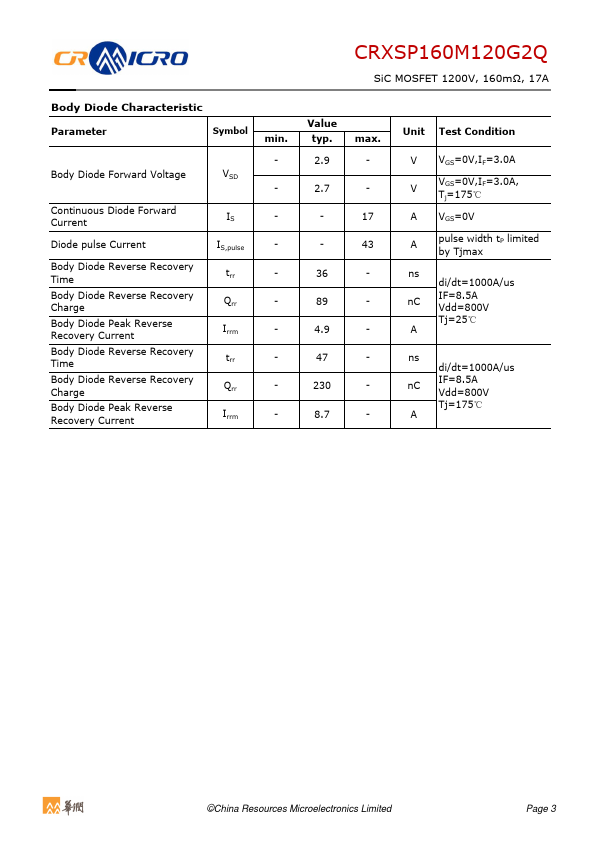

datasheet Preview Page 3

Datasheet Details

Part number	CRXSP160M120G2Q
Manufacturer	CR Micro
File Size	1.32 MB
Description	1200V 17A SiC MOSFET
Datasheet	CRXSP160M120G2Q-CRMicro.pdf

CRXSP160M120G2Q Product details

Features

Qualified according to AEC Q101.
CRM G2 SIC MOSFET Technology.
High Blocking Voltage with Low On-Resistance.
High Speed Switching with Low Capacitances.
Avalanche Ruggedness.
Fast Reverse Recovery.
