CRSQ113N20NZ-Q SkyMOS3 N-MOSFET

CRSQ113N20NZ-Q Description

() CRSQ113N20NZ-Q SkyMOS3 N-MOSFET 200V, 8.8mΩ, 115A .

CRSQ113N20NZ-Q Features

* Uses CRM(CQ) advanced SkyMOS3 technology
* Extremely low on-resistance RDS(on)
* Excellent QgxRDS(on) product(FOM)
* AEC-Q101 Criteria Qualified

CRSQ113N20NZ-Q Applications

* Motor control and drive
* Battery management
* UPS (Uninterrupible Power Supplies) Product Summary VDS 200V RDS(on) 8.8mΩ ID 115A 100% Avalanche Tested 100% DVDS Tested CRSQ113N20NZ-Q Package Marking and Ordering Information Part # Marking CRSQ113N20NZ-Q CRSQ113

📥 Download Datasheet

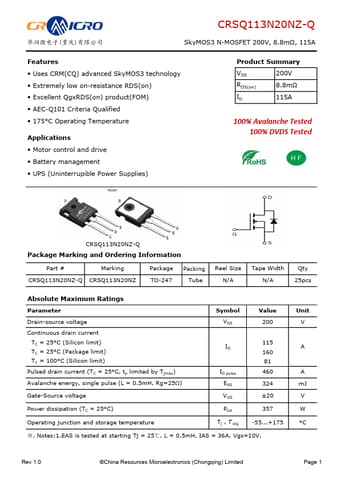

Preview of CRSQ113N20NZ-Q PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CRSQ113N20NZ-Q
Manufacturer
CR Micro
File Size
1.38 MB
Datasheet
CRSQ113N20NZ-Q-CRMicro.pdf
Description
SkyMOS3 N-MOSFET
