CRMV1004C - 100V Complementary Power MOSFET

CR Micro

📥 Download Datasheet

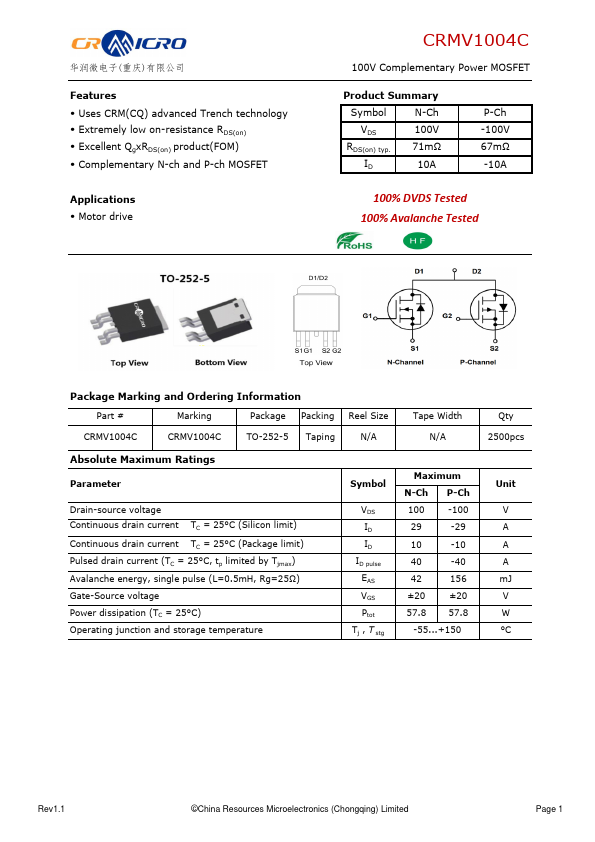

CRMV1004C Datasheet Preview — Preview of CRMV1004C PDF

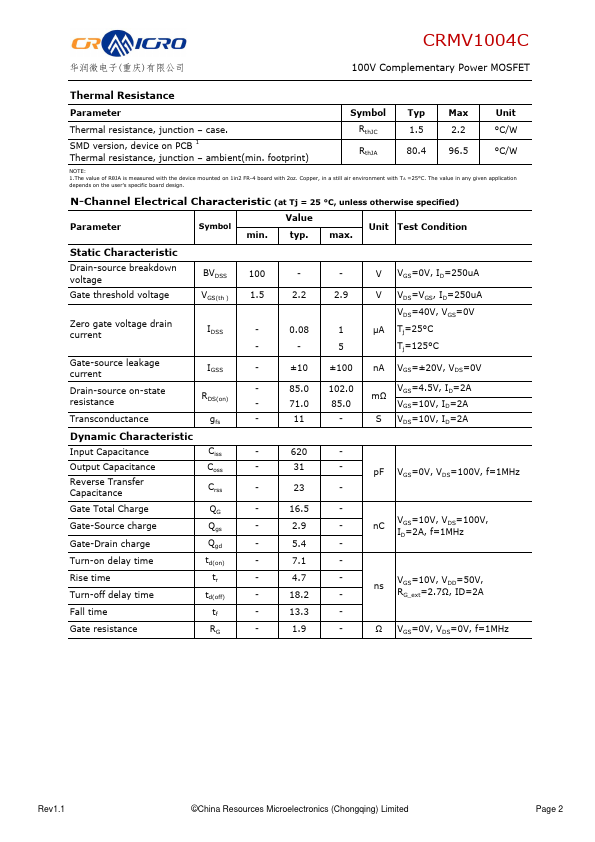

datasheet Preview Page 2

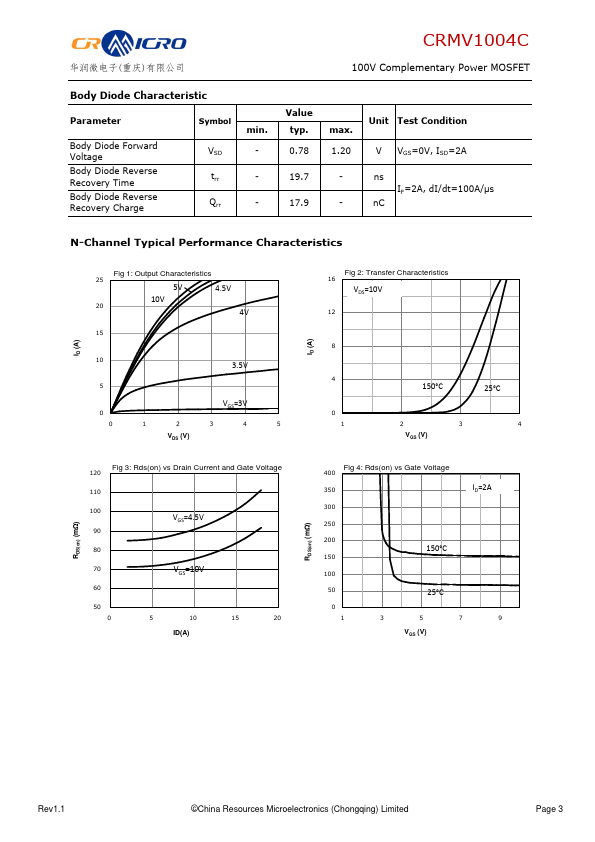

datasheet Preview Page 3

Datasheet Details

Part number	CRMV1004C
Manufacturer	CR Micro
File Size	1.17 MB
Description	100V Complementary Power MOSFET
Datasheet	CRMV1004C-CRMicro.pdf

CRMV1004C Product details

Features

Uses CRM(CQ) advanced Trench technology.
Extremely low on-resistance RDS(on).
Excellent QgxRDS(on) product(FOM).
Complementary N-ch and P-ch MOSFET.
