CRMD0309C - 30V Complementary Power MOSFET

CR Micro

📥 Download Datasheet

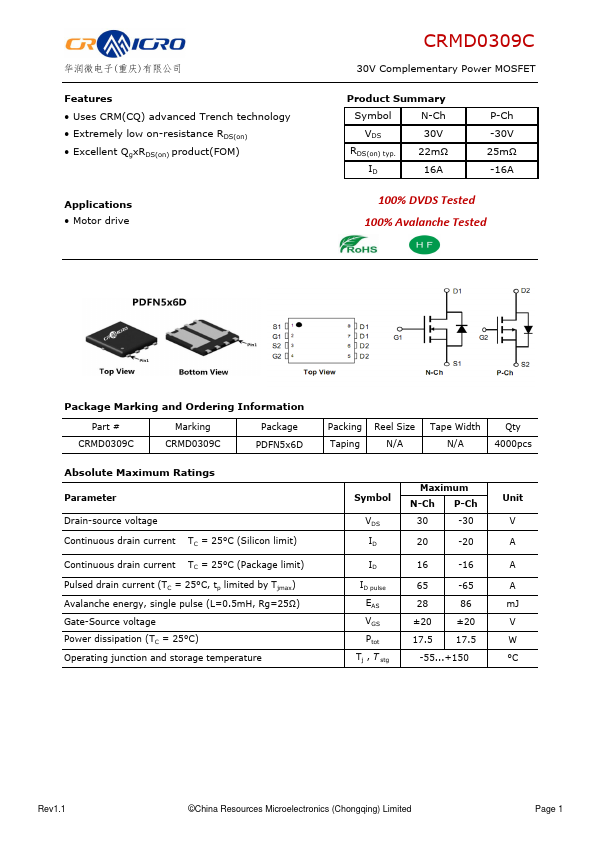

CRMD0309C Datasheet Preview — Preview of CRMD0309C PDF

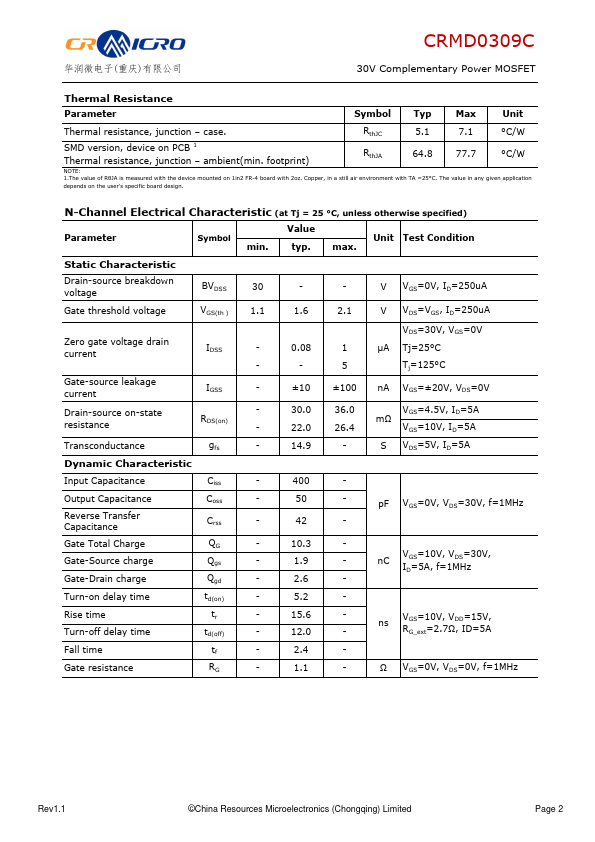

datasheet Preview Page 2

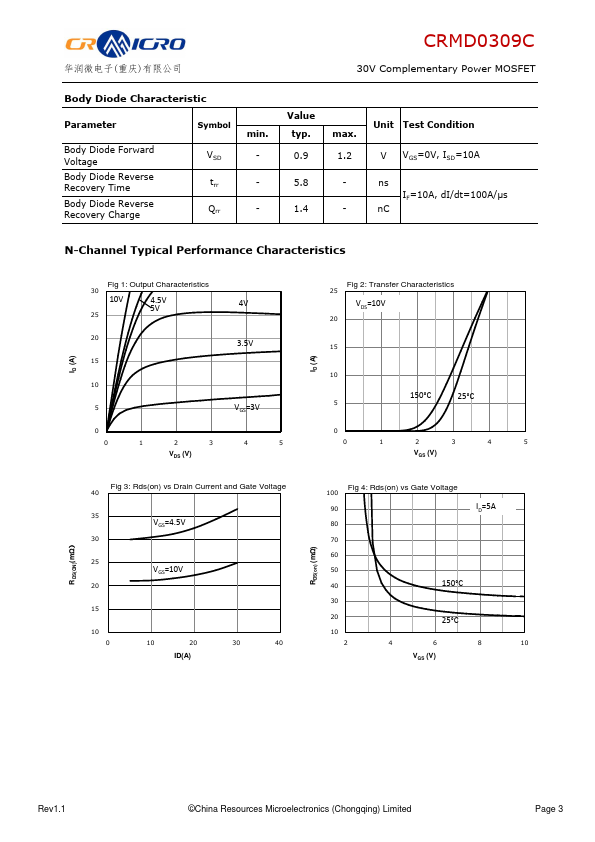

datasheet Preview Page 3

Datasheet Details

Part number	CRMD0309C
Manufacturer	CR Micro
File Size	1.24 MB
Description	30V Complementary Power MOSFET
Datasheet	CRMD0309C-CRMicro.pdf

CRMD0309C Product details

Features

Uses CRM(CQ) advanced Trench technology.
Extremely low on-resistance RDS(on).
Excellent QgxRDS(on) product(FOM).
