CRM50TE07FA - 500V 7A half-bridge Integrated Power Modules

Product Overview

CR Micro

📥 Download Datasheet

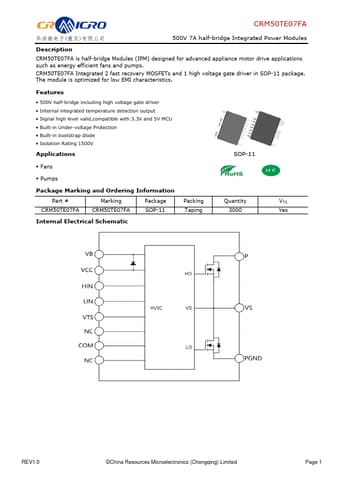

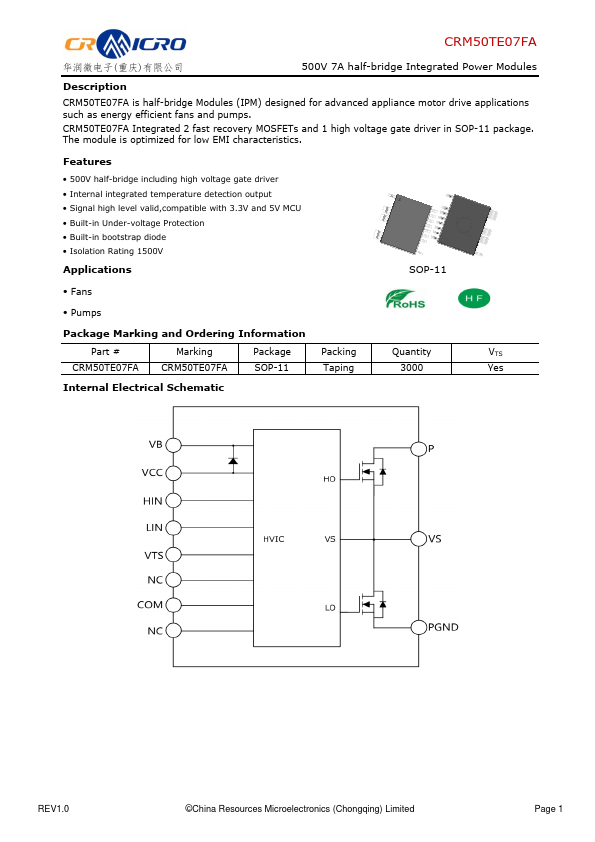

CRM50TE07FA 500V 7A half-bridge Integrated Power Modules by CR Micro - Datasheet Preview — Datasheet preview – CRM50TE07FA

Datasheet Details

Part number	CRM50TE07FA
Manufacturer	CR Micro
File Size	428.16 KB
Description	500V 7A half-bridge Integrated Power Modules
Datasheet	CRM50TE07FA Datasheet

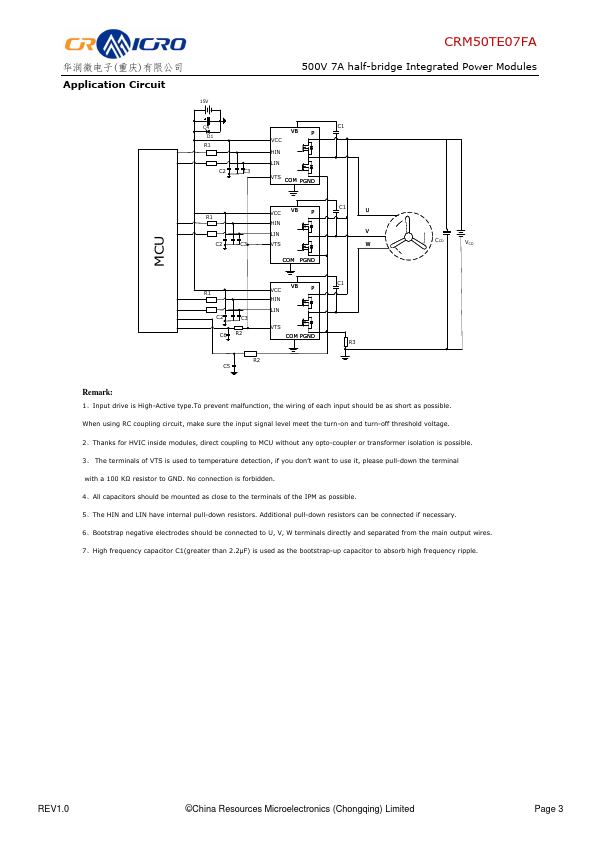

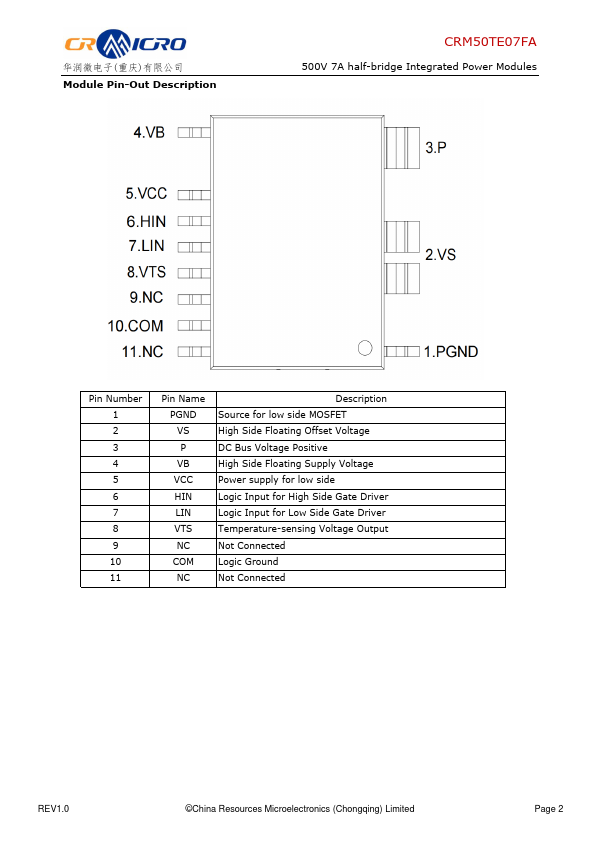

Additional preview pages of the CRM50TE07FA datasheet.

Product details

Description

CRM50TE07FA is half-bridge Modules (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps.

Features

500V half-bridge including high voltage gate driver.
Internal integrated temperature detection output.
Signal high level valid,compatible with 3.3V and 5V MCU.
Built-in Under-voltage Protection.
Built-in bootstrap diode.
Isolation Rating 1500V.
