CRG25T120BKR3S - Silicon FS Trench IGBT

Description

Using CRM's proprietary trench design, advanced FS(field stop) technology and integrated with Free Wheeling Diode, the 1200V Trench FS IGBT offers superior conduction and switching performances, high avalanche ruggedness.

Features

  • Trench FS Technology, Positive temperature coefficient.
  • Low saturation voltage: VCE(sat), typ =1.95V @ IC =25A.
  • Extremely enhanced avalanche capability VCES IC Ptot (TC=25℃) VCE(SAT) TO-247 1200 V 25 A 208 W 1.95 V.

📥 Download Datasheet

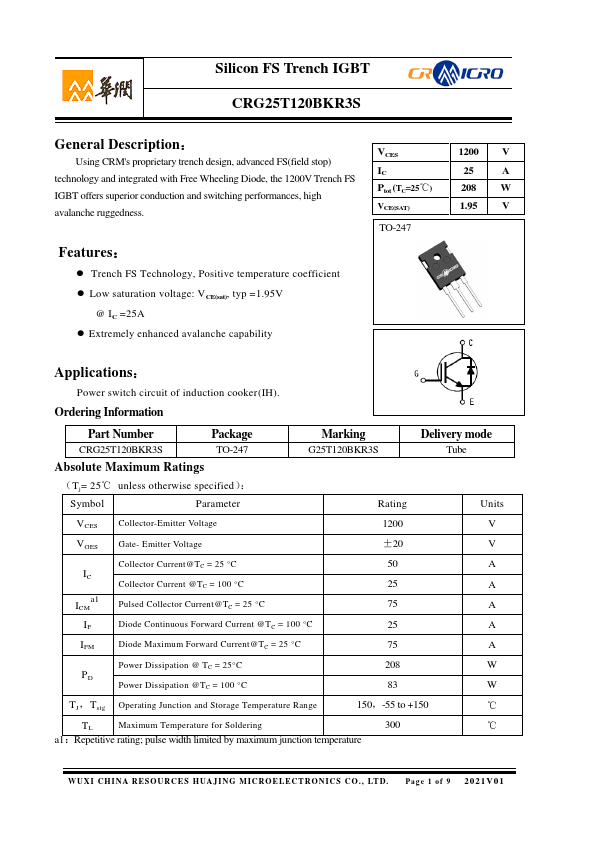

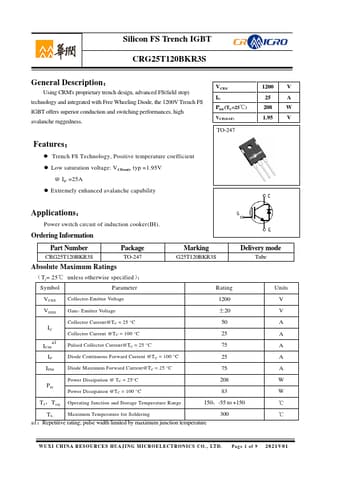

Datasheet preview – CRG25T120BKR3S

Datasheet Details

Part number CRG25T120BKR3S
Manufacturer CR Micro
File Size 698.79 KB
Description Silicon FS Trench IGBT
Datasheet download datasheet CRG25T120BKR3S Datasheet

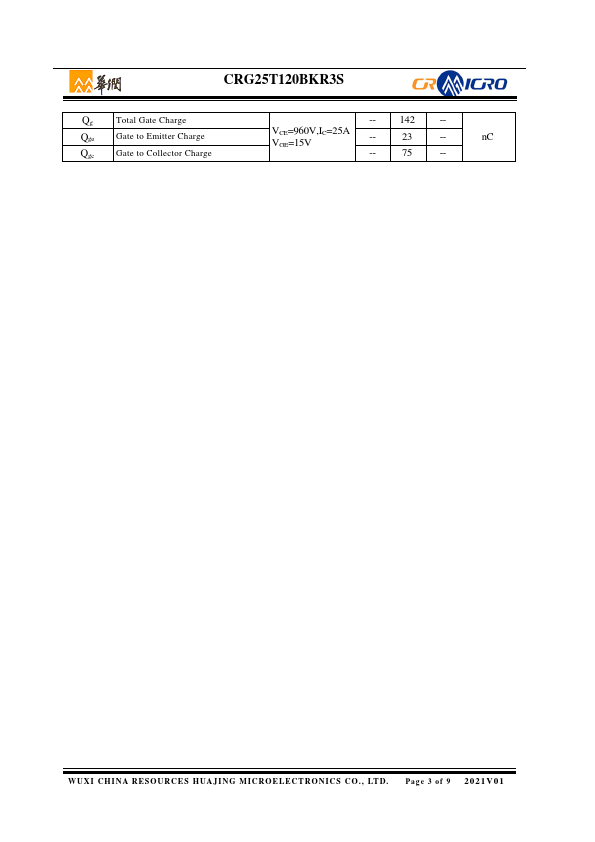

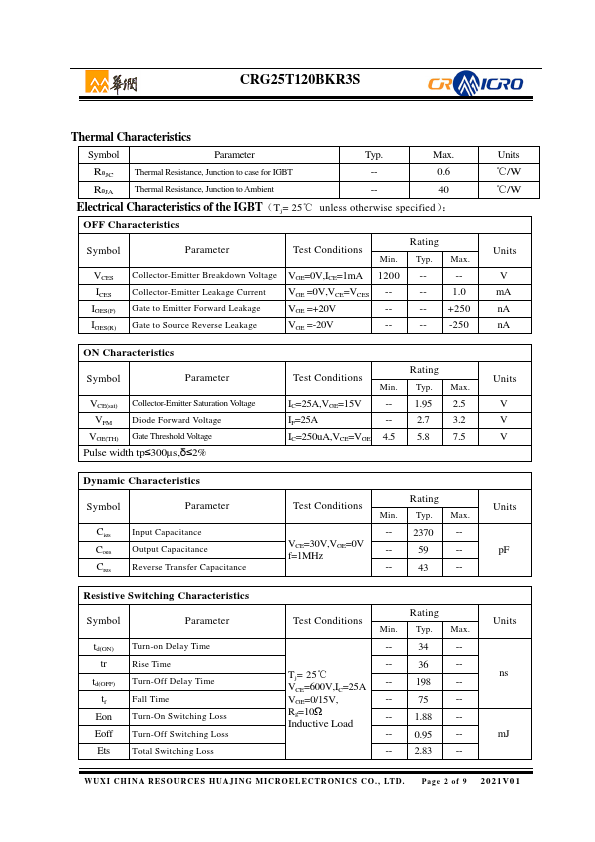

Additional preview pages of the CRG25T120BKR3S datasheet.

📁 Similar Datasheet

  • CRG2512 - Thick Film Chip Resistors (TE)
  • CRG2010 - Thick Film Chip Resistors (TE)
  • CRG01 - Rectifier (Toshiba Semiconductor)
  • CRG02 - Rectifier (Toshiba Semiconductor)
  • CRG0201 - Thick Film Chip Resistors (TE)
  • CRG04 - Rectifier Diode (Toshiba)
  • CRG0402 - Thick Film Chip Resistors (TE)
  • CRG04A - Rectifier Diode (Toshiba)
  • CRG05 - Rectifier (Toshiba)
  • CRG0603 - Thick Film Chip Resistors (TE)
Other Datasheets by CR Micro

Full PDF Text Transcription

Click to expand full text
Silicon FS Trench IGBT CRG25T120BKR3S General Description： Using CRM's proprietary trench design, advanced FS(field stop) technology and integrated with Free Wheeling Diode, the 1200V Trench FS IGBT offers superior conduction and switching performances, high avalanche ruggedness. Features：  Trench FS Technology, Positive temperature coefficient  Low saturation voltage: VCE(sat), typ =1.95V @ IC =25A  Extremely enhanced avalanche capability VCES IC Ptot (TC=25℃) VCE(SAT) TO-247 1200 V 25 A 208 W 1.95 V Applications： Power switch circuit of induction cooker(IH).
