CRG20T65RK5SDZ-G Datasheet - CR Micro

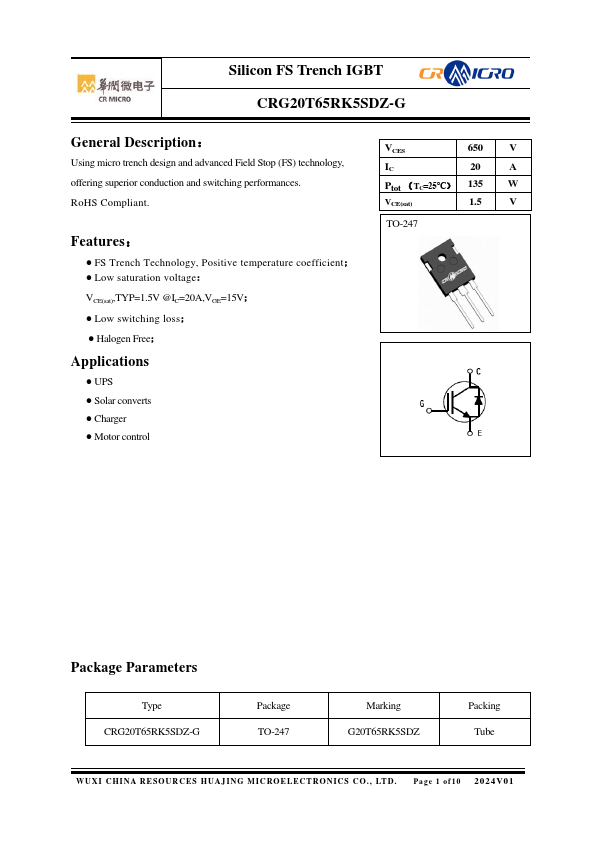

CRG20T65RK5SDZ-G Silicon FS Trench IGBT

CRG20T65RK5SDZ-G Features

* FS Trench Technology, Positive temperature coefficient；

* Low saturation voltage： VCE(sat),TYP=1.5V @IC=20A,VGE=15V；

* Low switching loss；

* Halogen Free； Applications

* UPS

* Solar converts

* Charger

* Motor control VCES 650 V IC 20 A Ptot （TC=25℃） 135 W V

Datasheet Details

CRG20T65RK5SDZ-G

CR Micro

1.34 MB

Silicon fs trench igbt.
