KL-150UYG, SMD HANDLING AND APPLICATION PRECAUTIONS

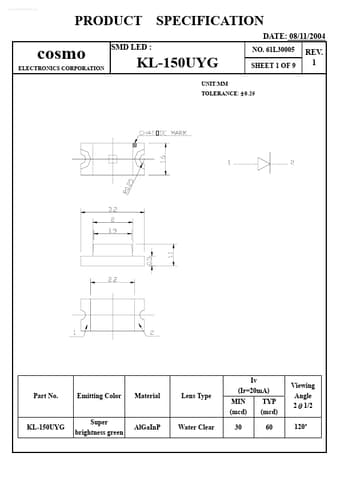

www.DataSheet4U.com PRODUCT SPECIFICATION DATE: 08/11/2004 NO.

61L30005 SHEET 1 OF 9 cosmo ELECTRONICS CORPORATION SMD LED : KL-150UYG UNIT:MM REV.

1 TOLERANCE: ± 0.25 Part No.

Emitting Color Material Lens Type Iv (IF=20mA) MIN (mcd) 30 TYP (mcd) 60 Viewing Angle 2θ1/2 120∘ KL-150UYG Super brightness green AlGaInP Water Clear PRODUCT SPECIFICATION DATE: 08/11/2004 NO.

61L30005 SHEET 2 OF 9 REV.

1 cosmo ELECTRONICS CORPORATION SMD LED : KL-150UYG QG VR IF IFP Pd TOP TST TA T
