CN5820 - Switch-Mode High-Brightness LED Driver IC

The CN5820 by CONSONANCE is a Switch-Mode High-Brightness LED Driver IC. Below is the official datasheet preview.

📥 Download Datasheet

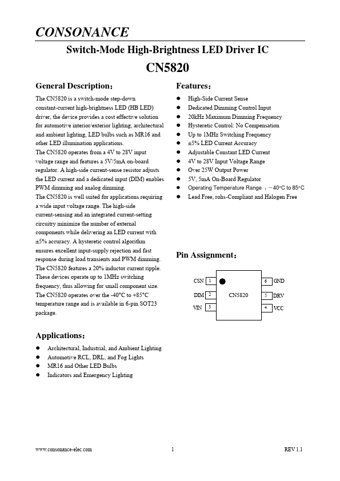

CN5820 Switch-Mode High-Brightness LED Driver IC by CONSONANCE - Datasheet Preview — Official preview page of the **CN5820** Switch-Mode High-Brightness LED Driver IC datasheet (CONSONANCE).

Datasheet Details

Part number	CN5820
Manufacturer	CONSONANCE
File Size	208.33 KB
Description	Switch-Mode High-Brightness LED Driver IC
Datasheet	CN5820-CONSONANCE.pdf
Additional preview pages of the CN5820 datasheet.

CN5820 Product details

Description

The CN5820 is a switch-mode step-down constant-current high-brightness LED (HB LED) driver, the device provides a cost effective solution for automotive interior/exterior lighting, architectural and ambient lighting, LED bulbs such as MR16 and other LED illumination applications.

Features

a 5V/5mA on-board regulator. A high-side current-sense resistor adjusts the LED current and a dedicated input (DIM) enables PWM dimming and analog dimming. The CN5820 is well suited for.
