CMT2210AW - Low-Cost 300 - 960MHz OOK Stand-Alone RF Receiver

Description

The CMT2210/17AW devices are ultra low power, high performance, low-cost OOK stand-alone RF receiver for various 300 to 960 MHz wireless applications.

The CMT2210AW covers the frequency range from 300 to 480 MHz while the CMT2217AW covers the 300 to 960 MHz frequency range.

Features

  • Embedded EEPROM.
  • Very Easy Development with RFPDK.
  • All Features Programmable.
  • Frequency Range.
  • 300 to 480 MHz (CMT2210AW).
  • 300 to 960 MHz (CMT2217AW).
  • Symbol Rate: 0.1 to 40 ksps.
  • Sensitivity: -113 dBm at 1 ksps, 0.1% BER.
  • Configurable Receiver Bandwidth: 50 to 500 kHz.
  • 3-wire SPI Interface for EEPROM Programming.
  • Stand-Alone, No External MCU Control Required.
  • Configurable Duty-Cycle Operation Mode.
  • Supply Voltage: 1.8 to 3.6 V.

📥 Download Datasheet

Datasheet Details

Part number CMT2210AW
Manufacturer CMOSTEK
File Size 784.14 KB
Description Low-Cost 300 - 960MHz OOK Stand-Alone RF Receiver
Datasheet download datasheet CMT2210AW Datasheet

📁 Similar Datasheet

Other Datasheets by CMOSTEK
  • CMT2210A - Low-Cost 300 - 960 MHz OOK Stand-Alone RF Receiver
  • CMT2210L - Low-Cost 315/433.92 MHz OOK Stand-Alone Receiver
  • CMT2210LB - OOK Standalone RF Receiver
  • CMT2210LC - Low Power 315/433.92 MHz OOK Receiver
  • CMT2210LCW - Low Power 315/433.92 MHz OOK Receiver
  • CMT2210LH - Low Power 315MHz/433.92MHz OOK Receiver
  • CMT2210LW - Low-Cost 315/433.92MHz OOK Stand-Alone Receiver
  • CMT2213AW - Low-Cost 300 - 480MHz (G)FSK/OOK Stand-Alone RF Receiver

Full PDF Text Transcription

Click to expand full text

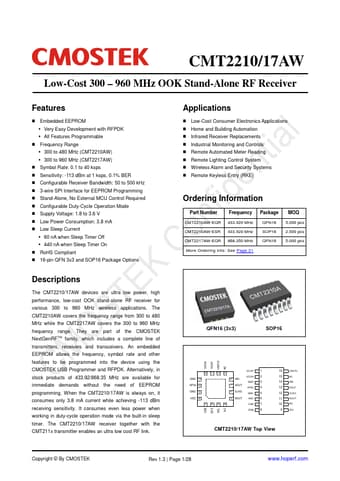

CMT2210/17AW CMT2210/17AW Low-Cost 300 – 960 MHz OOK Stand-Alone RF Receiver Features  Embedded EEPROM  Very Easy Development with RFPDK  All Features Programmable  Frequency Range  300 to 480 MHz (CMT2210AW)  300 to 960 MHz (CMT2217AW)  Symbol Rate: 0.1 to 40 ksps  Sensitivity: -113 dBm at 1 ksps, 0.1% BER  Configurable Receiver Bandwidth: 50 to 500 kHz  3-wire SPI Interface for EEPROM Programming  Stand-Alone, No External MCU Control Required  Configurable Duty-Cycle Operation Mode  Supply Voltage: 1.8 to 3.6 V  Low Power Consumption: 3.
