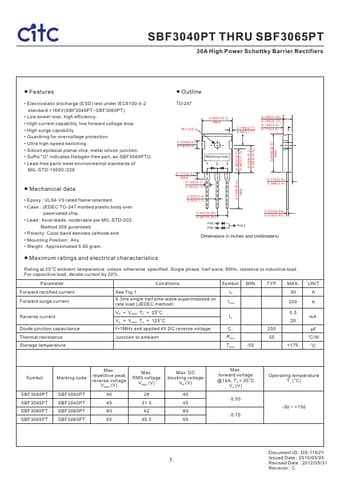

SBF3065PT, SBF3040PT - 30A High Power Schottky Barrier Rectifiers

Datasheet Details

Part number	SBF3065PT, SBF3040PT
Manufacturer	CITC
File Size	146.42 KB
Description	30A High Power Schottky Barrier Rectifiers
Datasheet	SBF3040PT-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: SBF3065PT, SBF3040PT. Please refer to the document for exact specifications by model.

s.
Outline.
Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(SBF3040PT~SBF3065PT).
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. SBF3040PTG.
Lead-free parts mee.
