SB3065CT - 30A High Power Schottky Barrier Rectifiers

Download the SB3065CT datasheet PDF (SB3040CT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 30a high power schottky barrier rectifiers.

Features

  • s.
  • Low power loss, high efficiency.
  • High current capability, low forward voltage drop.
  • High surge capability.
  • Guardring for overvoltage protection.
  • Ultra high-speed switching.
  • Silicon epitaxial planar chip, metal silicon junction.
  • Suffix "G" indicates Halogen-free part, ex. SB3040CTG.
  • Lead-free parts meet environmental standards of MIL-STD-19500 /228.
  • Mechanical data.
  • Epoxy : UL94-V0 rated flame retardant.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB3040CT-CITC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB3065CT
Manufacturer CITC
File Size 452.58 KB
Description 30A High Power Schottky Barrier Rectifiers
Datasheet download datasheet SB3065CT Datasheet

📁 Similar Datasheet

  • SB3065CT - 30A SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • SB3065FCT - 30A SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • SB3060 - High Power Schottky Barrier Rectifier (Sooner Power Semiconductor)
  • SB3060CT - SCHOTTKY BARRIER RECTIFIERS(VOLTAGE- 20 to 60 Volts CURRENT - 30.0 Ampere) (Pan Jit International Inc.)
  • SB3060CT - High Power Schottky Barrier Rectifier (Sooner)
  • SB3060CT - 30A DUAL SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB3060CT - 30A SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
  • SB3060CT - SCHOTTKY BARRIER RECTIFIER (PACELEADER)
  • SB3060DC - 30A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER (WON-TOP)
  • SB3060FCT - 30A SCHOTTKY BARRIER RECTIFIERS (Frontier Electronics)
Other Datasheets by CITC
  • SB3060CT - 30A High Power Schottky Barrier Rectifiers
  • SB3040CT - 30A High Power Schottky Barrier Rectifiers
  • SB3045CT - 30A High Power Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text

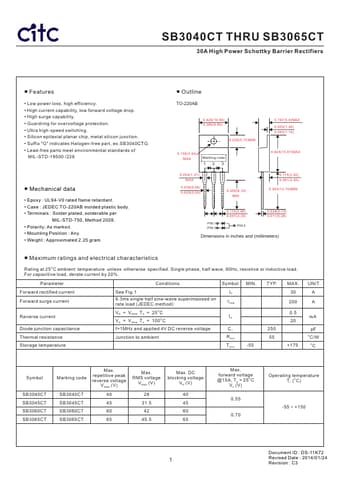

SB3040CT THRU SB3065CT 30A High Power Schottky Barrier Rectifiers ■ Features • Low power loss, high efficiency. • High current capability, low forward voltage drop. • High surge capability. • Guardring for overvoltage protection. • Ultra high-speed switching. • Silicon epitaxial planar chip, metal silicon junction. • Suffix "G" indicates Halogen-free part, ex.SB3040CTG. • Lead-free parts meet environmental standards of MIL-STD-19500 /228 ■ Mechanical data • Epoxy : UL94-V0 rated flame retardant. • Case : JEDEC TO-220AB molded plastic body. • Terminals : Solder plated, solderable per MIL-STD-750, Method 2026. • Polarity: As marked. • Mounting Position : Any. • Weight : Approximated 2.25 gram. ■ Outline TO-220AB 0.420(10.66) 0.386(9.80) 0.226(5.75)MIN 0.155(3.
