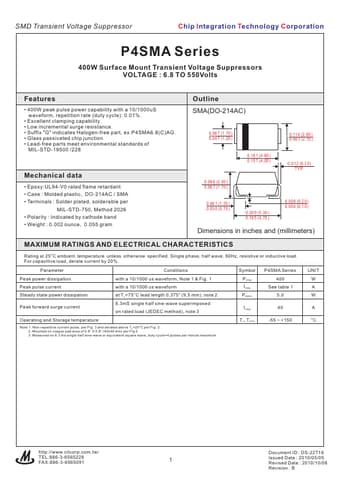

P4SMA39CA, P4SMA6.8A - 400W Surface Mount Transient Voltage Suppressors

CITC

Datasheet Details

Part number	P4SMA39CA, P4SMA6.8A
Manufacturer	CITC
File Size	78.50 KB
Description	400W Surface Mount Transient Voltage Suppressors
Datasheet	P4SMA6.8A-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: P4SMA39CA, P4SMA6.8A. Please refer to the document for exact specifications by model.

400W peak pulse power capability with a 10/1000uS waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Suffix "G" indicates Halogen-free part, ex. P4SMA6.8(C)AG.
Glass passivated chip junction.
Lead-free parts meet environmental standards of MIL-STD-19500 /228 Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-214AC / SMA.
Te.
