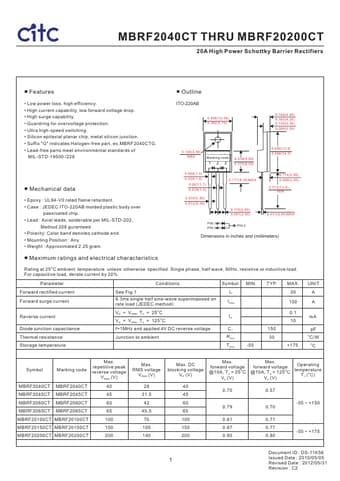

MBRF2040CT THRU MBRF20200CT
20A High Power Schottky Barrier Rectifiers
■ Features
■ Outline
• Low power loss, high efficiency. • High current capability, low forward voltage drop. • High surge capability. • Guardring for overvoltage protection. • Ultra high-speed switching. • Silicon epitaxial planar chip, metal silicon junction. • Suffix "G" indicates Halogen-free part, ex.MBRF2040CTG. • Lead-free parts meet environmental standards of
MIL-STD-19500 /228
ITO-220AB
0.408(10.36) 0.382(9.70)
0.189(4.80)
0.165(4.20) 0.130(3.30)
0.098(2.50)
0.138(3.50) MAX
Marking code
123
0.339(8.60) 0.315(8.00)
0.600(15.5) 0.580(14.5)
■ Mechanical data
• Epoxy : UL94-V0 rated flame retardant. • Case : JEDEC ITO-220AB molded plastic body over
passivated chip.
