GR1505 - 1.5A Leaded Type General Purpose Rectifiers

CITC

📥 Download Datasheet

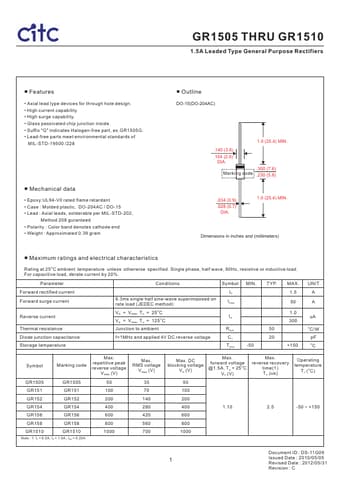

GR1505 Datasheet Preview — Preview of GR1505 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GR1505
Manufacturer	CITC
File Size	133.01 KB
Description	1.5A Leaded Type General Purpose Rectifiers
Datasheet	GR1505-CITC.pdf

GR1505 Product details

Features

s.
Axial lead type devices for through hole design.
High current capability.
High surge capability.
Glass passivated chip junction inside.
Suffix "G" indicates Halogen-free part, ex. GR1505G.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-204AC / DO-15.
Lead : Axial leads, solderable per MIL-STD-202, Method.
