GR1005 - 1A Leaded Type General Purpose Rectifiers

CITC

📥 Download Datasheet

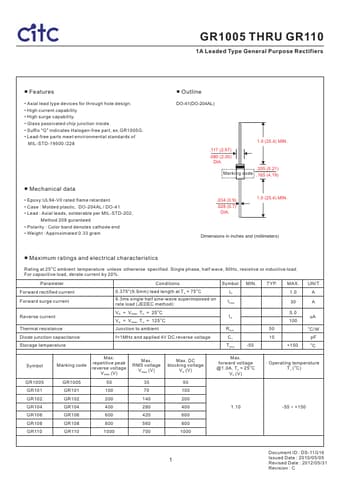

GR1005 Datasheet Preview — Preview of GR1005 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GR1005
Manufacturer	CITC
File Size	76.62 KB
Description	1A Leaded Type General Purpose Rectifiers
Datasheet	GR1005-CITC.pdf

GR1005 Product details

Features

s.
Axial lead type devices for through hole design.
High current capability.
High surge capability.
Glass passivated chip junction inside.
Suffix "G" indicates Halogen-free part, ex. GR1005G.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-204AL / DO-41.
Lead : Axial leads, solderable per MIL-STD-202, Method.
