GBJ806 - 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers

Download the GBJ806 datasheet PDF. This datasheet also covers the GBJ8005 variant, as both devices belong to the same 8a miniature glass passivated single-phase bridge rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • s.
  • Surge overload ratings to 170 amperes peak.
  • Recommended for non-automatic.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBJ8005-CITC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBJ806
Manufacturer CITC
File Size 81.07 KB
Description 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers
Datasheet download datasheet GBJ806 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBJ806 8.0A GLASS PASSIVATED BRIDGE RECTIFIER Diodes Incorporated
GBJ806 8 Amp Glass Passivated Bridge Rectifier Micro Commercial Components
GBJ806 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER STS
GBJ806 GLASS PASSIVATED BRIDGE RECTIFIER KD
GBJ806 Glass Passivated Bridge Rectifiers HY ELECTRONIC

Other Datasheets by CITC

Part Number Description
GBJ8005 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers
GBJ801 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers
GBJ802 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers
GBJ804 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers
GBJ808 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

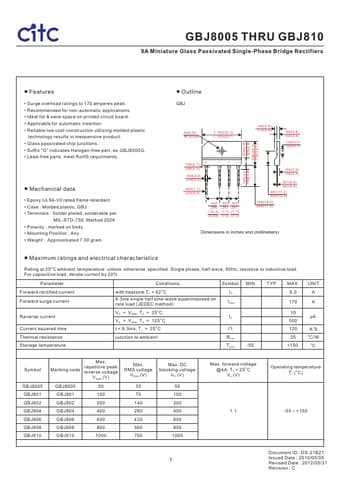

GBJ8005 THRU GBJ810 8A Miniature Glass Passivated Single-Phase Bridge Rectifiers ■ Features • Surge overload ratings to 170 amperes peak. • Recommended for non-automatic applications. • Ideal for & save space on printed circuit board. • Applicable for automatic insertion. • Reliable low cost construction utilizing molded plastic technology results in inexpensive product. • Glass passivated chip junctions. • Suffix "G" indicates Halogen-free part, ex.GBJ8005G. • Lead-free parts meet RoHS requirments. ■ Mechanical data • Epoxy:UL94-V0 rated flame retardant • Case : Molded plastic, GBJ • Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 • Polarity : marked on body • Mounting Position : Any • Weight : Approximated 7.00 gram ■ Outline GBJ hole for #6 screw 1.193(30.3) 1.
