FR106, FR1005 - 1A Leaded Type Fast Rectifiers

CITC

📥 Download Datasheet

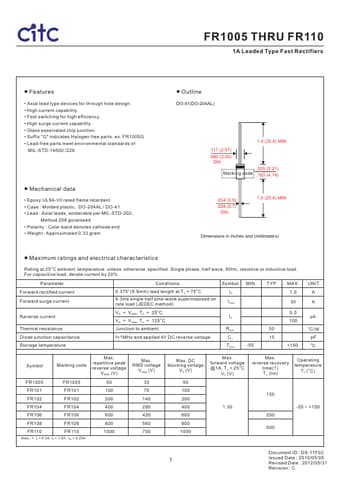

FR106 Datasheet Preview — This datasheet PDF includes multiple part numbers: FR106, FR1005. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FR106, FR1005
Manufacturer	CITC
File Size	79.36 KB
Description	1A Leaded Type Fast Rectifiers
Datasheet	FR1005-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: FR106, FR1005. Please refer to the document for exact specifications by model.

FR106 Product details

Features

s.
Axial lead type devices for through hole design.
High current capability.
Fast switching for high efficiency.
High surge current capability.
Glass passivated chip junction.
Suffix "G" indicates Halogen free parts, ex. FR1005G.
Lead-free parts meet environmental standards of MIL-STD-19500 /228.
Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-204AL / DO-41.
Lead :.
