ESDA3L15 - 350W Surface Mount Transient Voltage Suppressor Array

Product Overview

CITC

📥 Download Datasheet

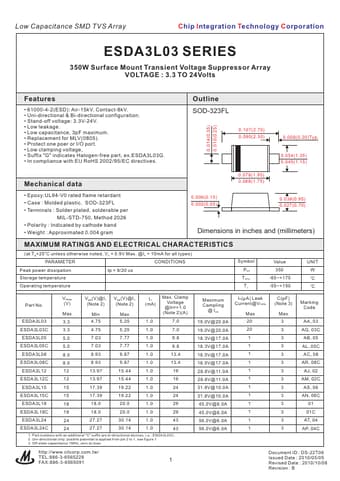

ESDA3L15 350W Surface Mount Transient Voltage Suppressor Array by CITC - Datasheet Preview — Datasheet preview – ESDA3L15

Datasheet Details

Part number	ESDA3L15
Manufacturer	CITC
File Size	48.51 KB
Description	350W Surface Mount Transient Voltage Suppressor Array
Datasheet	ESDA3L15 Datasheet
Note	This datasheet PDF includes multiple part numbers: ESDA3L15, ESDA3L03. Please refer to the document for exact specifications by model.
Additional preview pages of the ESDA3L15 datasheet.

Product details

Features

61000-4-2(ESD): Air-15kV, Contact-8kV.
Uni-directional & Bi-directional configuration.
Stand-off voltage: 3.3V-24V.
Low leakage.
Low capacitance, 3pF maximum.
Replacement for MLV(0805).
Protect one poer or I/O port.
Low clamping voltage,.
Suffix "G" indicates Halogen-free part, ex. ESDA3L03G.
In compliance with EU RoHS 2002/95/EC directives. 0.014(0.35) 0.010(0.25) Outline SOD-323FL 0.107(2.70) 0.
