AB110S - 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers

Download the AB110S datasheet PDF (AB102S included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1a miniature glass passivated single-phase surface mount bridge rectifiers.

Features

  • s.
  • Rating to 1000V PRV.
  • Ideal for printed circuit board.
  • Ideal for automated replacement.
  • Reliable low cost construction utilizing molded plastic technology results in inexpensive product.
  • Glass passivated chip junctions.
  • Ηigh temperature soldering guaranteed: 260OC /10 seconds.
  • Suffix "G" indicates Halogen-free part, ex. AB102SG.
  • Mechanical data.
  • Epoxy:UL94-V0 rated flame retardant.
  • Case : Molded plastic,.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AB102S-CITC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AB110S
Manufacturer CITC
File Size 81.04 KB
Description 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
Datasheet download datasheet AB110S Datasheet

📁 Similar Datasheet

Other Datasheets by CITC
  • AB110S-A - Single Phase 0.8AMP Surface Mount Glass Passivated Bridge Rectifiers
  • AB102S - 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
  • AB102S-A - Single Phase 0.8AMP Surface Mount Glass Passivated Bridge Rectifiers
  • AB104S - 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
  • AB104S-A - Single Phase 0.8AMP Surface Mount Glass Passivated Bridge Rectifiers
  • AB106S - 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers
  • AB106S-A - Single Phase 0.8AMP Surface Mount Glass Passivated Bridge Rectifiers
  • AB108S - 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text

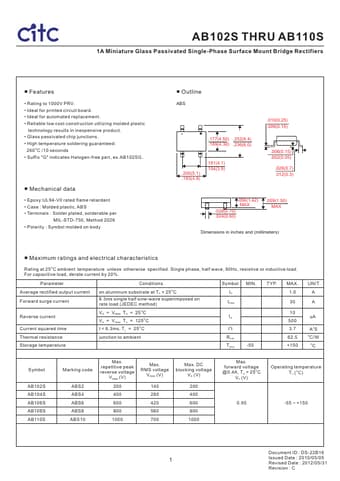

AB102S THRU AB110S 1A Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers ■ Features • Rating to 1000V PRV. • Ideal for printed circuit board. • Ideal for automated replacement. • Reliable low cost construction utilizing molded plastic technology results in inexpensive product. • Glass passivated chip junctions. • Ηigh temperature soldering guaranteed: 260OC /10 seconds • Suffix "G" indicates Halogen-free part, ex.AB102SG. ■ Mechanical data • Epoxy:UL94-V0 rated flame retardant • Case : Molded plastic, ABS • Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 • Polarity : Symbol molded on body ■ Outline ABS + .177(4.50) .252(6.4) .169(4.30) .236(6.0) .200(5.1) .193(4.9) .161(4.1) .154(3.9) .010(0.25) .006(0.15) .006(0.15) .002(0.05) .028(0.7) .
Published: |
