A2F1CSP, A2F1CCQ12VDC19 - CIT SWITCH

CIT Relay

📥 Download Datasheet

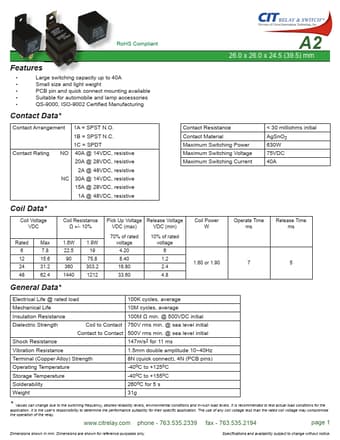

A2F1CSP Datasheet Preview — This datasheet PDF includes multiple part numbers: A2F1CSP, A2F1CCQ12VDC19. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	A2F1CSP, A2F1CCQ12VDC19
Manufacturer	CIT Relay
File Size	388.14 KB
Description	CIT SWITCH
Datasheet	A2F1CCQ12VDC19_CITRelay.pdf
Note	This datasheet PDF includes multiple part numbers: A2F1CSP, A2F1CCQ12VDC19. Please refer to the document for exact specifications by model.

A2F1CSP Product details

Features

Large switching capacity up to 40A.
Small size and light weight.
PCB pin and quick connect mounting available.
Suitable for automobile and lamp accessories.
QS-9000, ISO-9002 Certiﬁed Manufacturing Contact Data.
A2 26.0 x 26.0 x 24.5 (39.5) mm Contact Arrangement 1A = SPST N. O. 1B = SPST N. C. 1C = SPDT Contact Rating NO 40A @ 14VDC, resistive 20A @ 28VDC, resistive 2A @ 48VDC, resistive NC 30A @ 14VDC, resistive 15A @ 28VDC, resistiv.
