CHT-74132 Quad 2-Input NAND Schmitt Trigger

CHT-74132 Description

The Leader in High Temperature Semiconductor Solutions CHT-74132 DATASHEET Version: 3.7 8-Jul-14 (Last Modification Date) High-Temperature, Quad 2-.
The CHT-74132 contains four independent 2-input NAND gates with Schmitt Trigger, performing the Boolean function : Y  AB The gate switches at differ.

CHT-74132 Features

* Qualified from -55 to +225°C (Tj)
* 3.3 to 5V (±10%) supply voltages
* Latchup-free at any supply and tem- perature condition
* Validated at 225°C for 30000 hours (CDIL14) and 20000 hours (CSOIC16) (and still on-going)
* Available in CDIL14 and CSOIC 16 hermetic standard packag

CHT-74132 Applications

* High temperature logic
* Noise immunity function
* Sensor interface
* Signal processing/conditioning Package and Pin Configuration IN1 A 1 DIL14 14 VDD IN1 B 2 13 IN4 A OUT1 3 12 IN4 B IN2 A 4 11 OUT4 IN2 B 5 10 IN3 A OUT2 6 9 IN3 B VSS 7 8 OUT3 Pin Symbol Descript

📥 Download Datasheet

Preview of CHT-74132 PDF

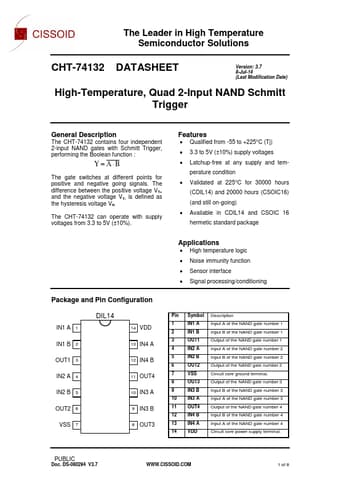

datasheet Preview Page 2 datasheet Preview Page 3
