EC6A13 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS

Download the EC6A13 datasheet PDF (EC6A01 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 7.5watt 2:1 input range dc-dc converters.

Features

  • 7.5W Isolated Output.
  • 24-Pin DIP Package.
  • Efficiency to 87%.
  • 2:1 Input Range.
  • Regulated Outputs.
  • Pi Input Filter.
  • Continuous Short Circuit Protection.
  • CE Mark Meets 2004/108/EC.
  • UL60950-1 Approval.
  • Without Tantalum Capacitor inside EC6A SERIES 7.5WATT 2:1 INPUT RANGE DC-DC.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EC6A01-CINCON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EC6A13
Manufacturer CINCON
File Size 121.88 KB
Description 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
Datasheet download datasheet EC6A13 Datasheet

📁 Similar Datasheet

  • EC635 - Designing with thermally protected TMOV Varistors in TVSS Applications (Littelfuse)
  • EC6696 - 4-Chanel WD1(960H)/D1 Video Decoders and Audio Codecs (ECHIP)
Other Datasheets by CINCON
  • EC6A11 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
  • EC6A12 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
  • EC6A14 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
  • EC6A15 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
  • EC6A16 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
  • EC6A17 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
  • EC6A01 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
  • EC6A02 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS

Full PDF Text Transcription

Click to expand full text

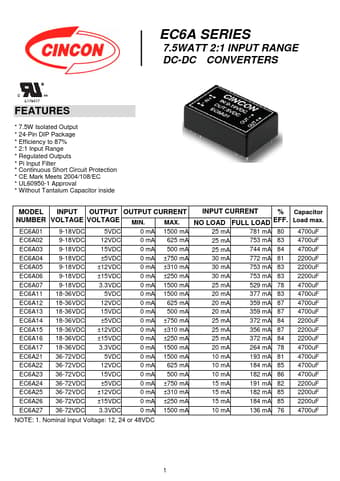

︳ FEATURES * 7.5W Isolated Output * 24-Pin DIP Package * Efficiency to 87% * 2:1 Input Range * Regulated Outputs * Pi Input Filter * Continuous Short Circuit Protection * CE Mark Meets 2004/108/EC * UL60950-1 Approval * Without Tantalum Capacitor inside EC6A SERIES 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS MODEL INPUT OUTPUT OUTPUT CURRENT NUMBER VOLTAGE VOLTAGE MIN. MAX. EC6A01 EC6A02 EC6A03 EC6A04 EC6A05 EC6A06 EC6A07 EC6A11 EC6A12 EC6A13 EC6A14 EC6A15 EC6A16 EC6A17 EC6A21 EC6A22 EC6A23 EC6A24 EC6A25 EC6A26 EC6A27 9-18VDC 9-18VDC 9-18VDC 9-18VDC 9-18VDC 9-18VDC 9-18VDC 18-36VDC 18-36VDC 18-36VDC 18-36VDC 18-36VDC 18-36VDC 18-36VDC 36-72VDC 36-72VDC 36-72VDC 36-72VDC 36-72VDC 36-72VDC 36-72VDC 5VDC 12VDC 15VDC ±5VDC ±12VDC ±15VDC 3.3VDC 5VDC 12VDC 15VDC ±5VDC ±12VDC ±15VDC 3.
