EC6A01 - 7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS

CINCON

📥 Download Datasheet

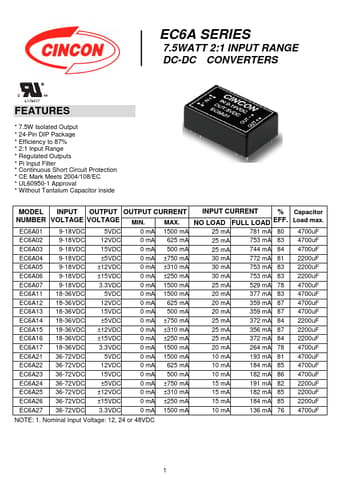

EC6A01 Datasheet Preview — Preview of EC6A01 PDF

datasheet Preview Page 2

Datasheet Details

Part number	EC6A01
Manufacturer	CINCON
File Size	121.88 KB
Description	7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS
Datasheet	EC6A01-CINCON.pdf

EC6A01 Product details

Features

7.5W Isolated Output.
24-Pin DIP Package.
Efficiency to 87%.
2:1 Input Range.
Regulated Outputs.
Pi Input Filter.
Continuous Short Circuit Protection.
CE Mark Meets 2004/108/EC.
UL60950-1 Approval.
Without Tantalum Capacitor inside EC6A SERIES 7.5WATT 2:1 INPUT RANGE DC-DC.
