CQE50W-48S48 - DC-DC CONVERTERS

Download the CQE50W-48S48 datasheet PDF. This datasheet also covers the CQE50W-24S3V3 variant, as both devices belong to the same dc-dc converters family and are provided as variant models within a single manufacturer datasheet.

Features

  • 50W Isolated Output.
  • No Tantalum Capacitor Inside.
  • Quarter-Brick Size, Six-Sided Shield Metal Case.
  • High Efficiency up to 92%.
  • 300KHz Switching Frequency.
  • 4 : 1 Input Range.
  • Regulated Outputs.
  • Continuous Short Circuit Protection.
  • Full Load Operation up to 80℃ with Heat-sink M-C421 Natural Convention.
  • Over Temperature/Voltage/Current Protection.
  • CE Mark Meets 2004/108/EC.
  • Safety Meets UL60950-1, EN60950-1, and IEC60950-1 MODEL NUMBER.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CQE50W-24S3V3-CINCON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CQE50W-48S48
Manufacturer CINCON
File Size 189.79 KB
Description DC-DC CONVERTERS
Datasheet download datasheet CQE50W-48S48 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by CINCON

Part Number Description
CQE50W-48S05 DC-DC CONVERTERS
CQE50W-48S12 DC-DC CONVERTERS
CQE50W-48S15 DC-DC CONVERTERS
CQE50W-48S24 DC-DC CONVERTERS
CQE50W-48S3V3 DC-DC CONVERTERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

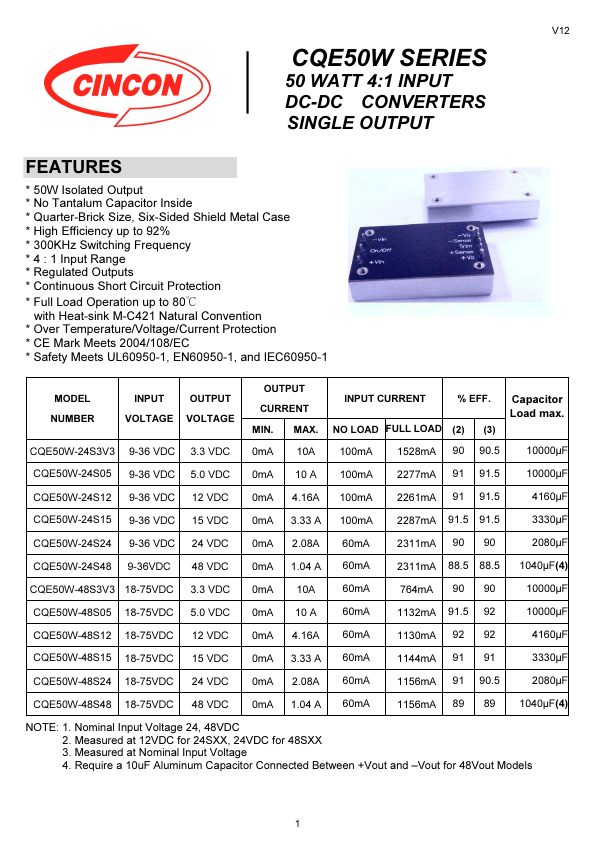

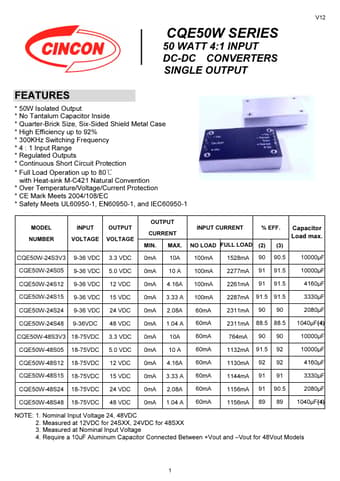

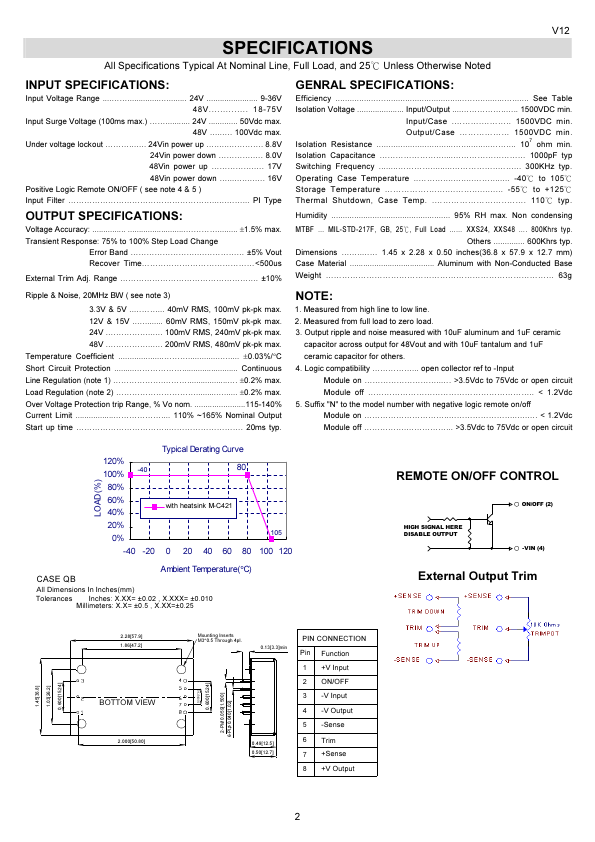

V12 ︳CQE50W SERIES 50 WATT 4:1 INPUT DC-DC CONVERTERS SINGLE OUTPUT FEATURES * 50W Isolated Output * No Tantalum Capacitor Inside * Quarter-Brick Size, Six-Sided Shield Metal Case * High Efficiency up to 92% * 300KHz Switching Frequency * 4 : 1 Input Range * Regulated Outputs * Continuous Short Circuit Protection * Full Load Operation up to 80℃ with Heat-sink M-C421 Natural Convention * Over Temperature/Voltage/Current Protection * CE Mark Meets 2004/108/EC * Safety Meets UL60950-1, EN60950-1, and IEC60950-1 MODEL NUMBER INPUT OUTPUT VOLTAGE VOLTAGE OUTPUT CURRENT MIN. MAX. INPUT CURRENT % EFF. NO LOAD FULL LOAD (2) (3) Capacitor Load max. CQE50W-24S3V3 9-36 VDC 3.3 VDC 0mA 10A 100mA 1528mA 90 90.5 10000µF CQE50W-24S05 9-36 VDC 5.0 VDC 0mA 10 A 100mA 2277mA 91 91.
