CHB50-12S12, CHB50 - 25 TO 50 WATT WIDE INPUT DC-DC CONVERTERS

CINCON

The CHB50-12S12 by CINCON is a 25 TO 50 WATT WIDE INPUT DC-DC CONVERTERS. Below is the official datasheet preview.

📥 Download Datasheet

CHB50-12S12 25 TO 50 WATT WIDE INPUT DC-DC CONVERTERS by CINCON - Datasheet Preview — Official preview page of the CHB50-12S12 25 TO 50 WATT WIDE INPUT DC-DC CONVERTERS datasheet (CINCON).

Datasheet Details

Part number	CHB50-12S12, CHB50
Manufacturer	CINCON
File Size	86.70 KB
Description	25 TO 50 WATT WIDE INPUT DC-DC CONVERTERS
Datasheet	CHB50-CINCON.pdf
Note	This datasheet PDF includes multiple part numbers: CHB50-12S12, CHB50. Please refer to the document for exact specifications by model.

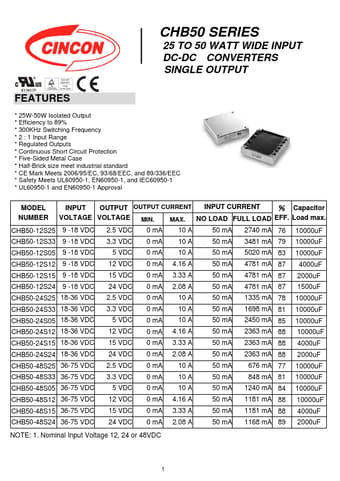

Additional preview pages of the CHB50-12S12 datasheet.

CHB50-12S12 Product details

Features

25W-50W Isolated Output.
Efficiency to 89%.
300KHz Switching Frequency.
2 : 1 Input Range.
Regulated Outputs.
Continuous Short Circuit Protection.
Five-Sided Metal Case.
Half-Brick size meet industrial standard.
CE Mark Meets 2006/95/EC, 93/68/EEC, and 89/336/EEC.
Safety Meets UL60950-1, EN60950-1, and IEC60950-1.
UL60950-1 and EN60950-1 Approval MODEL INPUT OUTPUT OUTPUT.
