STPA220, STPA150, (STPA62 - STPA270) SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR

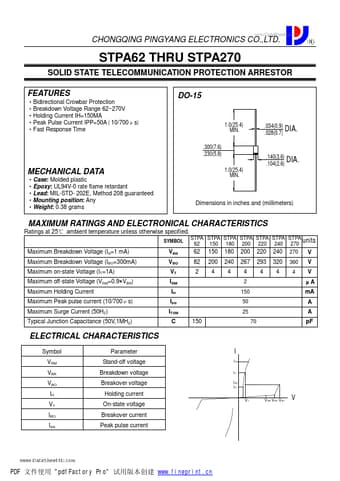

CHONGQING PINGYANG ELECTRONICS CO.,LTD.www.DataSheet4U.com STPA62 THRU STPA270 SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR .

STPA150_CHONGQINGPINGYANGELECTRONICS.pdf

STPA220 Datasheet Preview — This datasheet PDF includes multiple part numbers: STPA220, STPA150. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STPA220, STPA150

Manufacturer:

CHONGQING PINGYANG ELECTRONICS

File Size:

53.21 KB

Description:

(STPA62 - STPA270) SOLID STATE TELECOMMUNICATION PROTECTION ARRESTOR

Note:

This datasheet PDF includes multiple part numbers: STPA220, STPA150.
Please refer to the document for exact specifications by model.

Features

* Bidirectional Crowbar Protection
* Breakdown Voltage Range 62~270V
* Holding Current IH=150MA
* Peak Pulse Current IPP=50A (10/700μs)
* Fast Response Time DO-15 1.0(25.4) MIN. .300(7.6) .230(5.8) .034(0.9) .028(0.7) DIA. .140(3.6) .104(2.6) 1.0(25.4) MIN. DIA. MECHANICAL DATA
