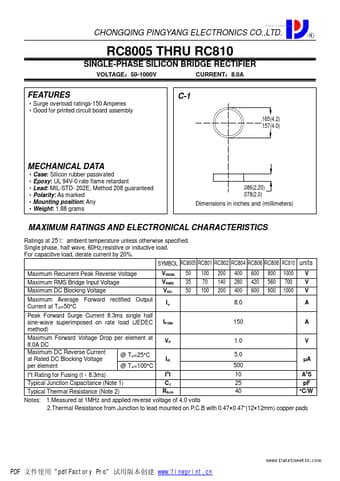

RC804 (RC8005 - RC810) SINGLE-PHASE SILICON BRIDGE RECTIFIER

RC804 Features

* Surge overload ratings-150 Amperes

* Good for printed circuit board assembly C-1 .165(4.2) .157(4.0) MECHANICAL DATA

* Case: Silicon rubber passivated

* Epoxy: UL 94V-0 rate flame retardant

* Lead: MIL-STD- 202E, Method 208 guaranteed

* Polarity: As marked

* Mounting positio

Datasheet Details

RC804, RC810

CHONGQING PINGYANG ELECTRONICS

61.18 KB

(rc8005 - rc810) single-phase silicon bridge rectifier.

This datasheet PDF includes multiple part numbers: RC804, RC810.
Please refer to the document for exact specifications by model.
