D20N10E - N-CHANNEL Power MOSFET

CHONGQING PINGYANG ELECTRONICS

Description

gate charge for most of the synchronous buck converter applications.

D20N10E n-channel power mosfet by CHONGQING PINGYANG ELECTRONICS - Datasheet Preview

Datasheet Details

Part number	D20N10E
Manufacturer	CHONGQING PINGYANG ELECTRONICS
File Size	466.11 KB
Description	N-CHANNEL Power MOSFET
Datasheet	D20N10E Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
D20N20	N-Channel Power MOSFET	STMicroelectronics
D20NF06	N-channel Power MOSFET	STMicroelectronics
D20NF06L	N-channel Power MOSFET	STMicroelectronics
D20	Memory Micromodules	STMicroelectronics
D200	SIP DC/DC Converters	uPD

Other Datasheets by CHONGQING PINGYANG ELECTRONICS

Part Number	Description
D20N06E	N-CHANNEL Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

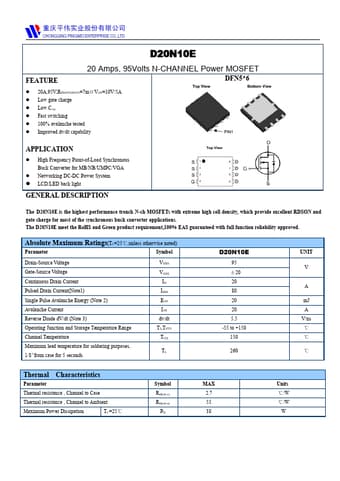

D20N10E FEATURE 20 Amps, 95Volts N-CHANNEL Power MOSFET DFN5*6  20A,95V,RDS(ON)MAX=7mΩVGS=10V/5A  Low gate charge  Low Ciss  Fast switching  100% avalanche tested  Improved dv/dt capability APPLICATION  High Frequency Piont-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA  Networking DC-DC Power System  LCD/LED back light GENERAL DESCRIPTION The D20N10E is the highest performance trench N-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications. The D20N10E meet the RoHS and Green product requirement,100% EAS guaranteed with full function reliability approved.
