CSPT12A03-4.0F - Chinasound SMD Piezo Transducer

📥 Download Datasheet

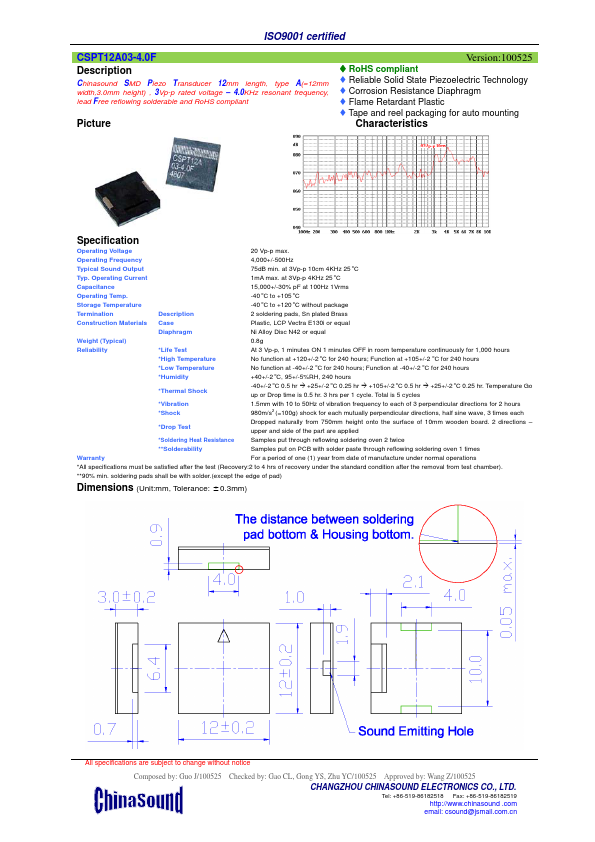

CSPT12A03-4.0F Datasheet Preview — Preview of CSPT12A03-4.0F PDF

Datasheet Details

Part number: CSPT12A03-4.0F
Manufacturer: CHINASOUND
File Size: 121.28 KB
Datasheet: CSPT12A03-4.0F-CHINASOUND.pdf
Description: Chinasound SMD Piezo Transducer

CSPT12A03-4.0F Product details

Description

Chinasound SMD Piezo Transducer 12mm length, type A(=12mm width,3.0mm height) , 3Vp-p rated voltage. 4.0KHz resonant frequency, lead Free reflowing solderable and RoHS compliant Picture Version:100525 RoHS compliant Reliable Solid State Piezoelectric Technology Corrosion Resistance Diaphragm Flame Retardant Plastic Tape and reel packaging for auto mounting Characteristics Specification Operating Voltage 20 Vp-p max.Operating Frequency Typical Sound Output Typ.Operating.
