CUW0805-261M-N Datasheet - CHILISIN

CUW0805-261M-N SMD Common Mode Choke

CUW0805-261M-N Features

* Applications

* RoHS Compliant

* USB line for personal computers and peripheral

* Miniature SMD type common mode filter for fully automated assembly

* IEEE 1394 line for personal computers, DVC, STB

* Wide impedance range (30Ω ~ 2200Ω) for noise suppression

* LVDS, panel

CUW0805-261M-N Datasheet (305.75 KB)

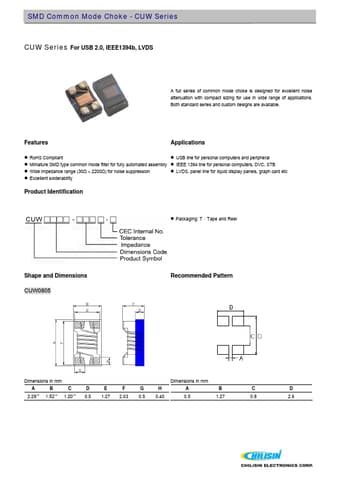

Preview of CUW0805-261M-N PDF
CUW0805-261M-N Datasheet Preview Page 2 CUW0805-261M-N Datasheet Preview Page 3

Datasheet Details

Part number:

CUW0805-261M-N

Manufacturer:

CHILISIN

File Size:

305.75 KB

Description:

Smd common mode choke.
