XGZP6899D - Calibrated Pressure Sensor

📥 Download Datasheet

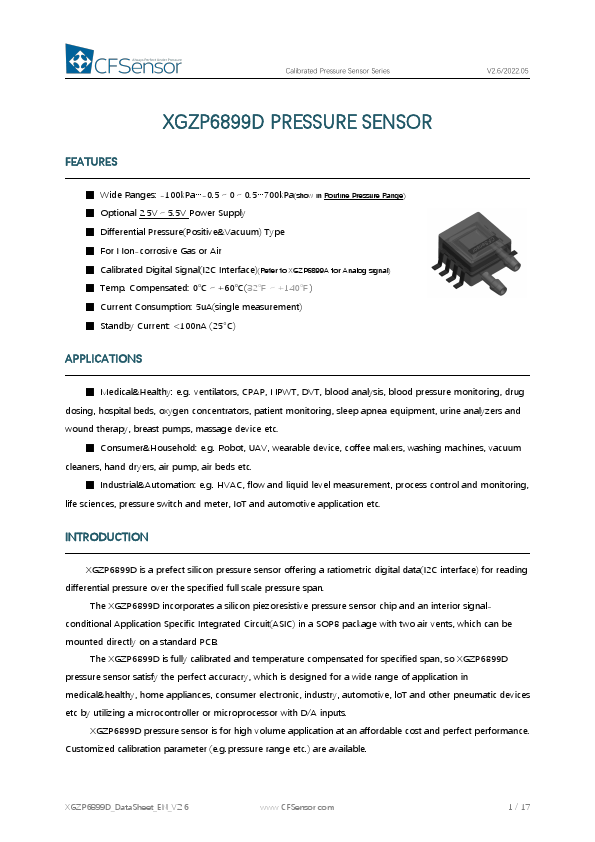

XGZP6899D Datasheet Preview — Preview of XGZP6899D PDF

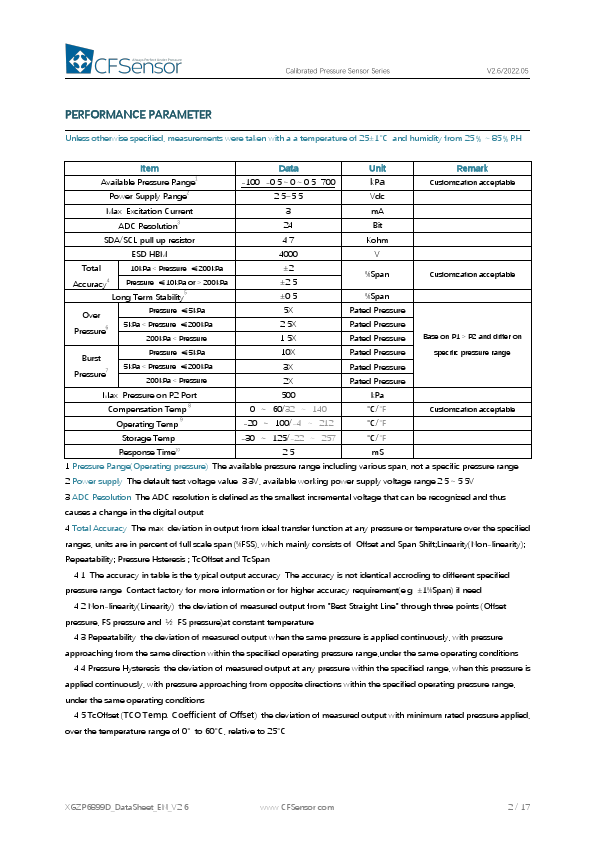

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XGZP6899D
Manufacturer	CFSensor
File Size	1.19 MB
Description	Calibrated Pressure Sensor
Datasheet	XGZP6899D-CFSensor.pdf

XGZP6899D Product details

Features

Wide Ranges: -100kPa…-0.5～0～0.5…700kPa(show in Routine Pressure Range).
Optional 2.5V～5.5V Power Supply.
Differential Pressure(Positive&Vacuum) Type.
For Non-corrosive Gas or Air.
Calibrated Digital Signal(I2C Interface)(Refer to XGZP6899A for Analog signal).
Temp. Compensated: 0℃～+60℃(32℉～+140℉).
Current Consumption: 5uA(single measurement).
Standby Current:.
