NX6311EH - LASER DIODE

Description

The NX6311EH is a 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with InGaAs monitor PIN-PD.

4 G fiber channel

Features

  • Optical output power.
  • Low threshold current.
  • Differential efficiency.
  • InGaAs monitor PIN-PD.
  • CAN package.
  • Focal point Po = 7.0 mW lth = 8 mA ηd = 0.40 W/A.
  • Wide operating temperature range TC =.
  • 30 to +85°C φ 5.6 mm 5.8 mm Document No. PL10631EJ01V0DS (1st edition) Date Published September 2006 NS CP(K) 2006 NX6311EH.

📥 Download Datasheet

Datasheet Details

Part number NX6311EH
Manufacturer CEL
File Size 241.07 KB
Description LASER DIODE
Datasheet download datasheet NX6311EH Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NX6314EH LASER DIODE California Eastern Labs
NX6308GH LASER DIODE California Eastern Labs
NX6309GH LASER DIODE California Eastern Labs
NX6342EP LASER DIODE California Eastern Labs
NX6350GP LASER DIODE California Eastern Labs

Other Datasheets by CEL

Part Number Description
NX6301 LASER DIODE
NX6306 LASER DIODE
NX6307 LASER DIODE
NX6504 LASER DIODE
NX6506 LASER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

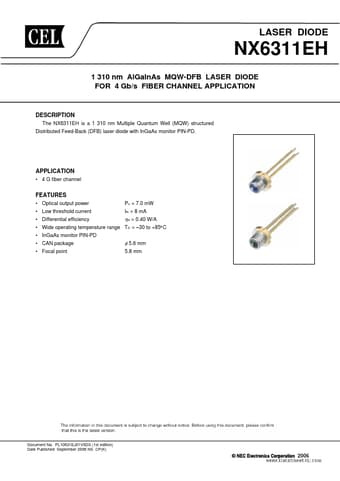

LASER DIODE NX6311EH 1 310 nm AlGaInAs MQW-DFB LASER DIODE FOR 4 Gb/s FIBER CHANNEL APPLICATION DESCRIPTION The NX6311EH is a 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with InGaAs monitor PIN-PD. APPLICATION • 4 G fiber channel FEATURES • Optical output power • Low threshold current • Differential efficiency • InGaAs monitor PIN-PD • CAN package • Focal point Po = 7.0 mW lth = 8 mA ηd = 0.40 W/A • Wide operating temperature range TC = −30 to +85°C φ 5.6 mm 5.8 mm Document No. PL10631EJ01V0DS (1st edition) Date Published September 2006 NS CP(K) 2006 NX6311EH PACKAGE DIMENSIONS (UNIT: mm) φ 5.6+0.00 –0.03 (φ 4.2) *2 *2 (φ 3.55) 1.0±0.1 BOTTOM VIEW 1 2 3 4 110˚±2˚ (0.3) *2 (0.3) *1 φ 2.0 3.87±0.3 2.97±0.2 5.80±0.
