MM3Z2V0 - SILICON PLANAR ZENER DIODES

Product Overview

CDIL

📥 Download Datasheet

MM3Z2V0 SILICON PLANAR ZENER DIODES by CDIL - Datasheet Preview — Datasheet preview – MM3Z2V0

Datasheet Details

Part number	MM3Z2V0
Manufacturer	CDIL
File Size	1.80 MB
Description	SILICON PLANAR ZENER DIODES
Datasheet	MM3Z2V0 Datasheet

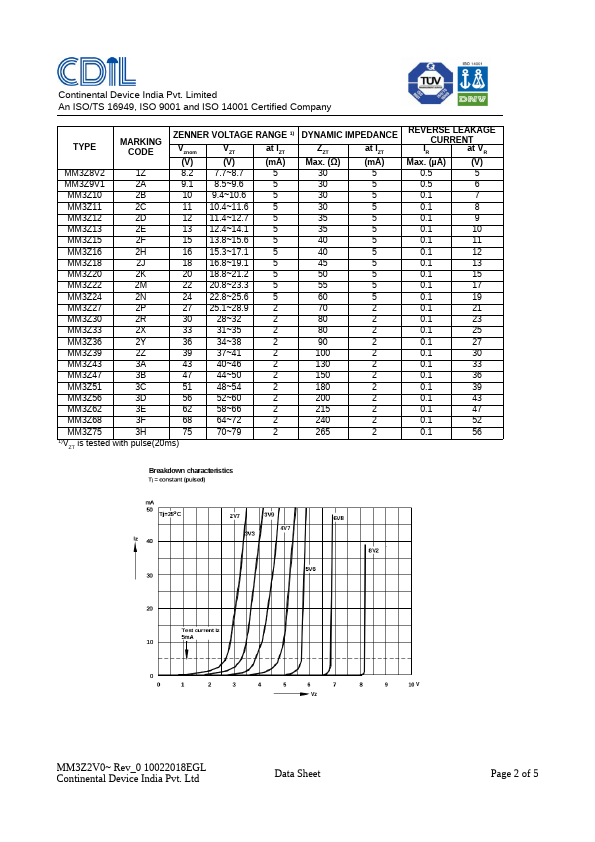

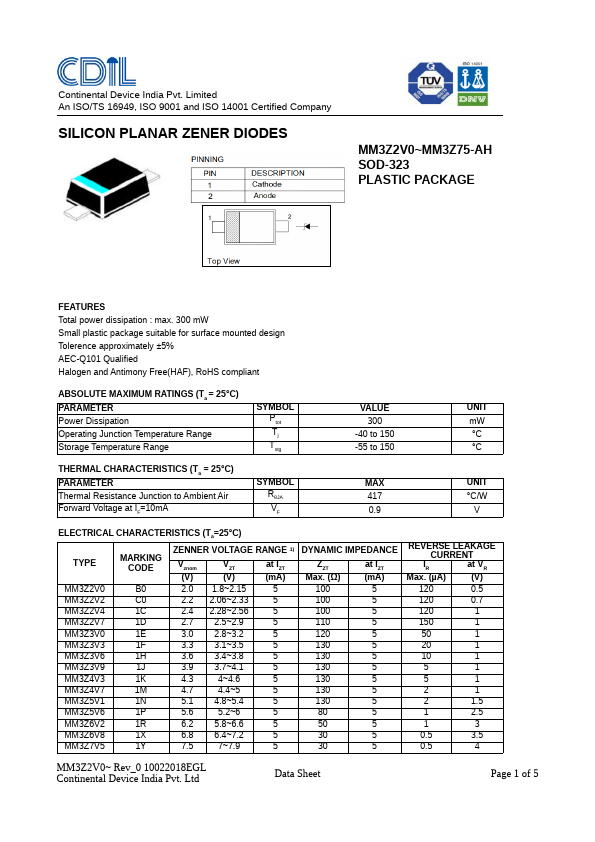

Additional preview pages of the MM3Z2V0 datasheet.

Product details

Features

Total power dissipation : max. 300 mW Small plastic package suitable for surface mounted design Tolerence approximately ±5% AEC-Q101 Qualified Halogen and Antimony Free(HAF), RoHS compliant.
