CTN369 - (CTN368 / CTN369) NPN SILICON PLANAR EPITAXIAL TRANSISTORS

Download the CTN369 datasheet PDF. This datasheet also covers the CTN368 variant, as both devices belong to the same (ctn368 / ctn369) npn silicon planar epitaxial transistors family and are provided as variant models within a single manufacturer datasheet.

Description

SYMBOL VCES Collector -Emitter Voltage VCEO Collector -Emitter Voltage VEBO Emitter Base Voltage IC Collector Current Continuous PD Total Power Dissipation @TA=25ºC Derate Above =25ºC PD Total Power Dissipation @TC=25ºC Derate Above =25ºC Tj, Tstg Operating and Storage Junction Temperature Range THE

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CTN368_CDIL.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CTN369
Manufacturer CDIL
File Size 176.28 KB
Description (CTN368 / CTN369) NPN SILICON PLANAR EPITAXIAL TRANSISTORS
Datasheet download datasheet CTN369 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CTN2304 N-Channel Enhancement Mode MOSFET Crownpo
CTNS-4306S Ultrafast Rectifier INCHANGE
CTNS-4306S Fast Recovery and High Power Diode Sanken
CTNS-4603S Fast Recovery and High Power Diode Sanken
CTNS-4606S Fast Recovery and High Power Diode Sanken

Other Datasheets by CDIL

Part Number Description
CTN368 (CTN368 / CTN369) NPN SILICON PLANAR EPITAXIAL TRANSISTORS
CTN635 (CTN635 - CTN640) Complementary Transistors
CTN636 (CTN635 - CTN640) Complementary Transistors
CTN637 (CTN635 - CTN640) Complementary Transistors
CTN638 (CTN635 - CTN640) Complementary Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

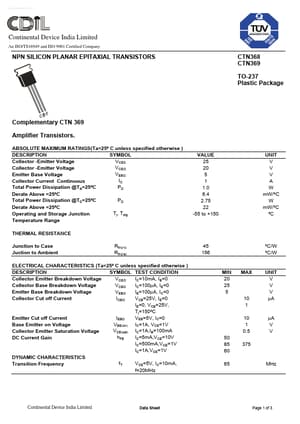

www.DataSheet4U.com Continental Device India Limited An ISO/TS16949 and ISO 9001 Certified Company NPN SILICON PLANAR EPITAXIAL TRANSISTORS CTN368 CTN369 TO-237 Plastic Package Complementary CTN 369 Amplifier Transistors. ABSOLUTE MAXIMUM RATINGS(Ta=25º C unless specified otherwise ) DESCRIPTION SYMBOL VCES Collector -Emitter Voltage VCEO Collector -Emitter Voltage VEBO Emitter Base Voltage IC Collector Current Continuous PD Total Power Dissipation @TA=25ºC Derate Above =25ºC PD Total Power Dissipation @TC=25ºC Derate Above =25ºC Tj, Tstg Operating and Storage Junction Temperature Range THERMAL RESISTANCE Junction to Case Juction to Ambient Rth(j-c) Rth(j-a) 45 156 ºC/W ºC/W VALUE 25 20 5 1 1.0 6.4 2.
