CT73 - HIGH SPEED SILICON SWITCHING DIODE AXIAL LEAD

The CT73 by CDIL is a HIGH SPEED SILICON SWITCHING DIODE AXIAL LEAD. Below is the official datasheet preview.

📥 Download Datasheet

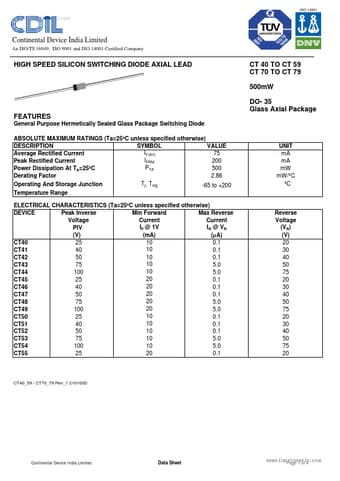

Official preview page of the CT73 HIGH SPEED SILICON SWITCHING DIODE AXIAL LEAD datasheet (CDIL).

Datasheet Details

Part number CT73
Manufacturer CDIL
File Size 195.08 KB
Description HIGH SPEED SILICON SWITCHING DIODE AXIAL LEAD
Datasheet download datasheet CT73_CDIL.pdf
Additional preview pages of the CT73 datasheet.

CT73 Product details

Description

I 75 Average Rectified Current F(AV) IFRM 200 Peak Rectified Current PTA Power Dissipation At TA=25ºC 500 2.86 Derating Factor Tj, Tstg Operating And Storage Junction -65 to +200 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise) Max Reverse DEVICE Peak Inverse Min Forward Current Current Voltage I R @ VR IF @ 1V PIV (mA) (V) (µ A) 10 CT40 25 0.1 10 CT41 40 0.1 CT42 50 10 0.1 10 CT43 75 5.0 10 CT44 100 5.0 20 CT45 25 0.1 20 CT46 40 0.1 20 CT47 50 0.1 20 CT48 75 5.0

Features
