Datasheet Details
Part number:
CSB858, CSB857
Manufacturer:
CDIL
File Size:
111.86 KB
Description:
(csb857 / csb858) pnp/npn silicon power transistor.
Note:
This datasheet PDF includes multiple part numbers: CSB858, CSB857.
Please refer to the document for exact specifications by model.
CSB858, CSB857, (CSB857 / CSB858) PNP/NPN SILICON POWER TRANSISTOR

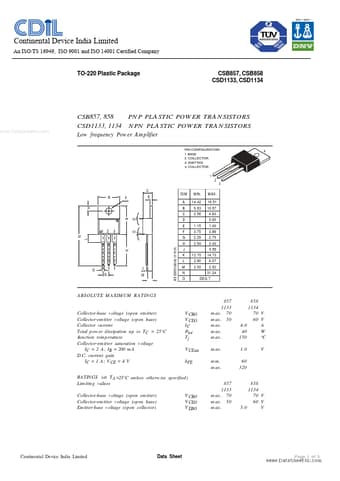

Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company TO-220 Plastic Package CSB857, CSB858 CSD1133, CSD1134 www.DataSheet4U.com CSB857, 858 PNP PLASTIC POWER TRANSISTORS CSD1133, 1134 NPN PLASTIC POWER TRANSISTORS Low frequency Power Amplifier PIN CONFIGURATION 1.
BASE 2.
COLLECTOR 3.
EMITTER 4.
COLLECTOR 4 1 2 3 B H F C E DIM A B C D E F G H J K L M N O MIN .
14.42 9.63 3.56 MAX.
1 2 N L 3 D G J M 16.51 10.67 4.83 0.90 1.15 1.40 3.75 3.88 2
